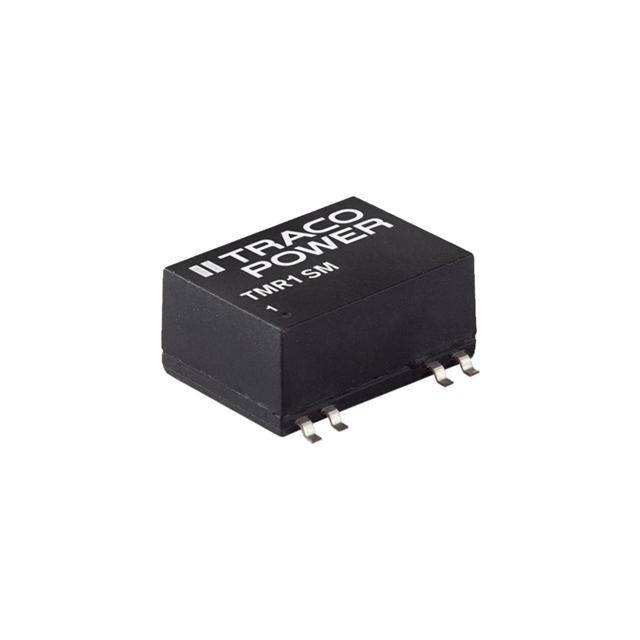

TMR 1-1211SM

Active

Traco Power

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMR 1-1211SM

Active

Traco Power

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMR 1-1211SM

Applications	ITE (Commercial)
Approval Agency	CB, CSA
Current - Output (Max) [Max]	200 mA
Efficiency	79 %
Features	Remote On/Off, OCP, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	82 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SMD Module, 7 Leads
Size / Dimension [x]	18.9 mm
Size / Dimension [x]	0.74 in
Size / Dimension [y]	0.54 "
Size / Dimension [y]	13.7 mm
Size / Dimension [z]	0.34 in
Size / Dimension [z]	8.7 mm
Supplier Device Package	Module
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

TMR 1 Series

Part	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Supplier Device Package	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Features	Current - Output (Max)	Approval Agency	Type	Number of Outputs	Mounting Type	Voltage - Output 2	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Traco Power TMR 1-2423SM	15 V	36 V	ITE (Commercial)	Module	14-SMD Module 7 Leads	1.5 kV	18 V	OCP Remote On/Off SCP	33 mA	CB CSA	Isolated Module	2	Surface Mount	-15 V	0.99 W	82 °C	-40 °C	18.9 mm	0.34 in	0.54 "	0.74 in	8.7 mm	13.7 mm
Traco Power TMR 1-0515	24 V	9 V	ITE (Commercial)	Module	6-SIP Module 4 Leads	1.5 kV	4.5 V	OCP SCP		CB CSA	Isolated Module	1	Through Hole			85 °C	-40 °C	17 mm	0.43 "	0.3 "	0.67 in	11 mm	7.6 mm	76 %	42 mA
Traco Power TMR 1-0512	12 V	9 V	ITE (Commercial)	Module	6-SIP Module 4 Leads	1.5 kV	4.5 V	OCP SCP		CB CSA	Isolated Module	1	Through Hole			85 °C	-40 °C	17 mm	0.43 "	0.3 "	0.67 in	11 mm	7.6 mm	77 %	83 mA
Traco Power TMR 1-4822SM	12 V	75 V	ITE (Commercial)	Module	14-SMD Module 7 Leads	1.5 kV	36 V	OCP Remote On/Off SCP		CB CSA	Isolated Module	2	Surface Mount	-12 V		82 °C	-40 °C	18.9 mm	0.34 in	0.54 "	0.74 in	8.7 mm	13.7 mm	81 %	42 mA	42 mA
Traco Power TMR 1-0513SM	15 V	9 V	ITE (Commercial)	Module	14-SMD Module 7 Leads	1.5 kV	4.5 V	OCP Remote On/Off SCP		CB CSA	Isolated Module	1	Surface Mount			82 °C	-40 °C	18.9 mm	0.34 in	0.54 "	0.74 in	8.7 mm	13.7 mm	81 %	67 mA
Traco Power TMR 1-2411SM	5 V	36 V	ITE (Commercial)	Module	14-SMD Module 7 Leads	1.5 kV	18 V	OCP Remote On/Off SCP		CB CSA	Isolated Module	1	Surface Mount			82 °C	-40 °C	18.9 mm	0.34 in	0.54 "	0.74 in	8.7 mm	13.7 mm	79 %	200 mA
Traco Power TMR 1-0522	12 V	9 V	ITE (Commercial)	Module	6-SIP Module 5 Leads	1.5 kV	4.5 V	OCP SCP		CB CSA	Isolated Module	2	Through Hole	-12 V		85 °C	-40 °C	17 mm	0.43 "	0.3 "	0.67 in	11 mm	7.6 mm	77 %	42 mA	42 mA
Traco Power TMR 1-1223SM	15 V	18 V	ITE (Commercial)	Module	14-SMD Module 7 Leads	1.5 kV	9 V	OCP Remote On/Off SCP	33 mA	CB CSA	Isolated Module	2	Surface Mount	-15 V	0.99 W	82 °C	-40 °C	18.9 mm	0.34 in	0.54 "	0.74 in	8.7 mm	13.7 mm	80 %
Traco Power TMR 1-1211SM	5 V	18 V	ITE (Commercial)	Module	14-SMD Module 7 Leads	1.5 kV	9 V	OCP Remote On/Off SCP		CB CSA	Isolated Module	1	Surface Mount			82 °C	-40 °C	18.9 mm	0.34 in	0.54 "	0.74 in	8.7 mm	13.7 mm	79 %	200 mA
Traco Power TMR 1-0523SM	15 V	9 V	ITE (Commercial)	Module	14-SMD Module 7 Leads	1.5 kV	4.5 V	OCP Remote On/Off SCP	33 mA	CB CSA	Isolated Module	2	Surface Mount	-15 V	0.99 W	82 °C	-40 °C	18.9 mm	0.34 in	0.54 "	0.74 in	8.7 mm	13.7 mm	80 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.78
		10	$ 13.59
		25	$ 13.14
		50	$ 12.81
		100	$ 12.49
		250	$ 12.08
		500	$ 11.77

Description

General part information

TMR 1 Series

Isolated Module DC DC Converter 1 Output 5V 200mA 9V - 18V Input
