DC60A60C
ObsoleteSensata-Crydom

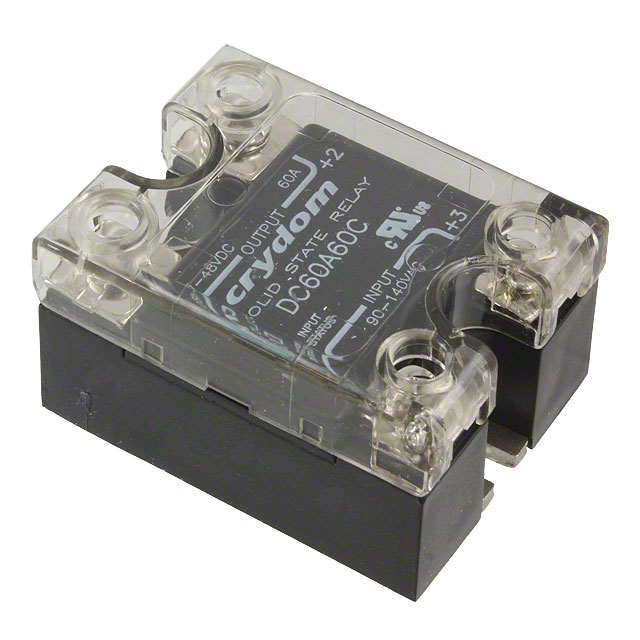

MOSFET RELAY, SPST-NO (1 FORM A), DC, 48 V, 60 A, HOCKEY PUCK, PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DC60A60C
ObsoleteSensata-Crydom
MOSFET RELAY, SPST-NO (1 FORM A), DC, 48 V, 60 A, HOCKEY PUCK, PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC60A60C |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 60 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 8.5 mOhms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 140 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Load [Max] | 48 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DC60A6 Series
Solid State SPST-NO (1 Form A) Hockey Puck
