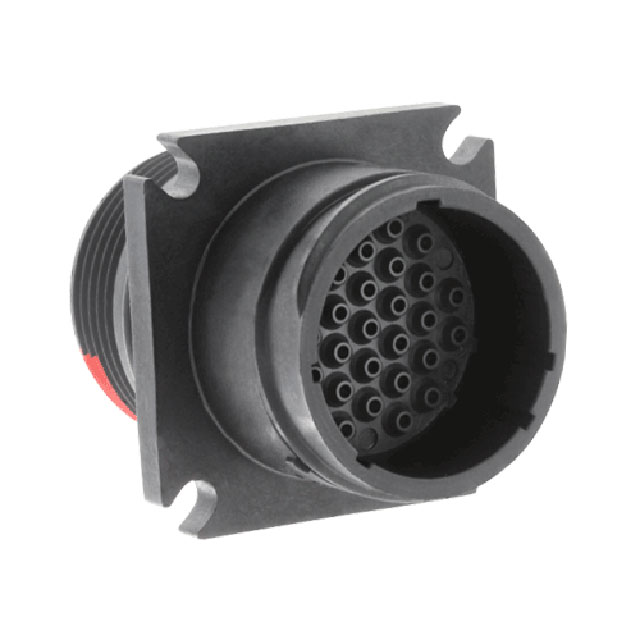

CL1M3201

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 31POS PNL MT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 31POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	CL1M3201

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	31
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert	3-2
Shielding	Unshielded
Type	For Male Pins

Part	Housing Color	Type	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Ingress Protection	Insert Material	Shielding	Note	Mounting Feature	Number of Positions	Shell Material	Contact Shape	Material Flammability Rating	Shell Size - Insert	Contact Size	Contact Type
Souriau-Sunbank by Eaton CL1M3201	Black	For Male Pins	Twist Latch	Receptacle Housing	125 °C	-40 °C	Keyed	IP67 - Dust Tight Waterproof	Thermoplastic	Unshielded	Contacts Not Included	Flange	31	Thermoplastic Halogen Free	Circular	UL94 V-0	3-2	20	Crimp and Solder Cup

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 12.80

General part information

31 Position Circular Connector Receptacle Housing Panel Mount
