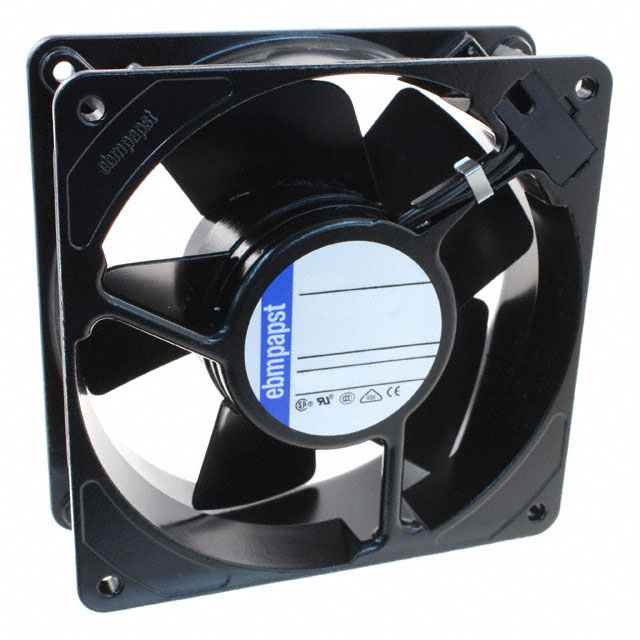

4530Z
ActiveAC AXIAL FAN, 115V, SQUARE, 119 MM, 38 MM, SLEEVE BEARING, 71 CFM
Deep-Dive with AI
Search across all available documentation for this part.
4530Z
ActiveAC AXIAL FAN, 115V, SQUARE, 119 MM, 38 MM, SLEEVE BEARING, 71 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4530Z |
|---|---|
| Air Flow | 1.97 m³/min |
| Air Flow | 70.5 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 52500 Hrs |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Noise | 32 dB |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 12 W |
| RPM | 2000 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 0.075 lb |
| Weight | 34.19 g |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
4530 Series
The 4530Z is a 115VAC Compact Axial Fan with a Sintec sleeve bearing and painted black sheet steel impeller. This 4000 Z series AC fan comes with a die-cast aluminum housing and via 2 flat plugs 2.8 x 0.5mm grounding lug for M4 x 8 power cable connection. The motor is protected from overload by impedance protection. The direction of rotation is clock wise direction viewed toward rotor. The air exhausts over struts. The axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
