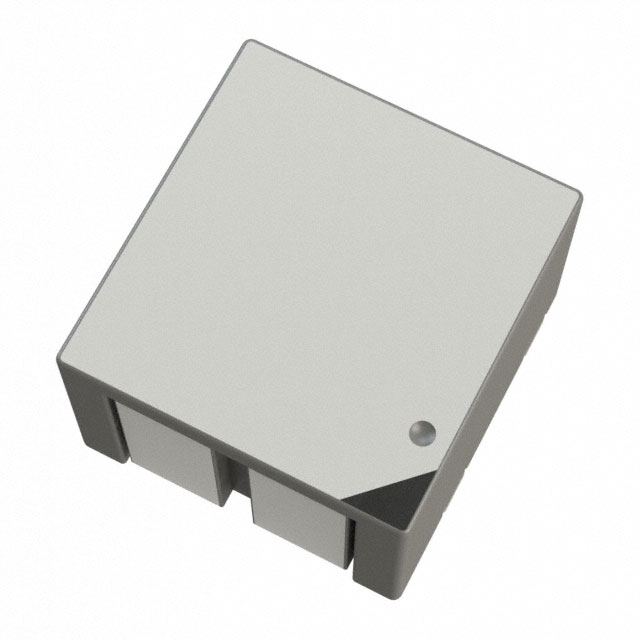

CL1108-4-50TR-R
ActiveEaton - Electronics Division
FIXED IND 50NH 80A 0.00028OHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CL1108-4-50TR-R
ActiveEaton - Electronics Division
FIXED IND 50NH 80A 0.00028OHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL1108-4-50TR-R |
|---|---|
| Current Rating (Amps) | 80 A |
| DC Resistance (DCR) | 0.28 mOhm |
| Features | 4 Phase |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Inductance | 50 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [x] | 1.417 in |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [y] | 0.433 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.61 | |
| 10 | $ 9.78 | |||
| 25 | $ 8.83 | |||
| 50 | $ 8.18 | |||
| 100 | $ 7.56 | |||
| Digi-Reel® | 1 | $ 12.61 | ||
| 10 | $ 9.78 | |||
| 25 | $ 8.83 | |||
| 50 | $ 8.18 | |||
| 100 | $ 7.56 | |||
| Tape & Reel (TR) | 200 | $ 7.00 | ||
| 400 | $ 6.59 | |||
Description
General part information
CL1108 Series
50 nH Inductor 80 A 0.28mOhm Nonstandard 4 Phase
