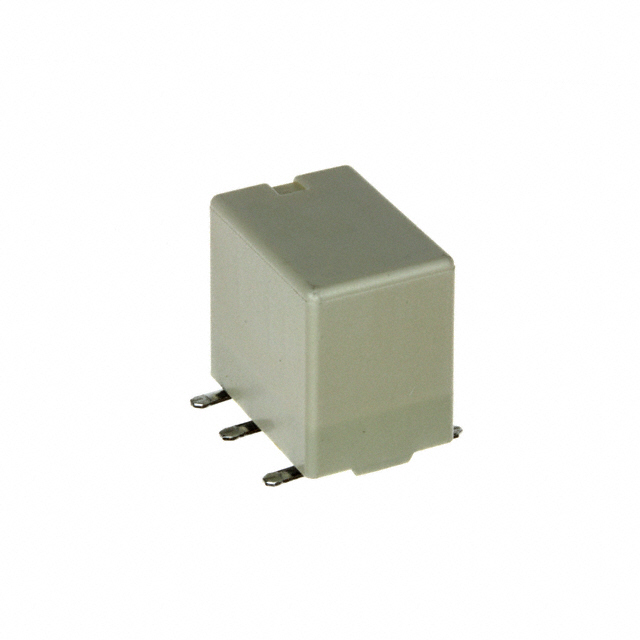

ACNM7112SAX
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
ACNM7112SAX
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACNM7112SAX |
|---|---|
| Coil Current | 53.3 mA |
| Coil Power | 640 mW |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 30 A |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.76 | |
| 10 | $ 2.59 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.19 | |||
| 100 | $ 2.07 | |||
| Digi-Reel® | 1 | $ 2.76 | ||
| 10 | $ 2.59 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.19 | |||
| 100 | $ 2.07 | |||
| Tape & Reel (TR) | 200 | $ 2.07 | ||
| 400 | $ 2.02 | |||
Description
General part information
ACNM7112 Series
RELAY AUTOMOTIVE SPST 30A 12V
