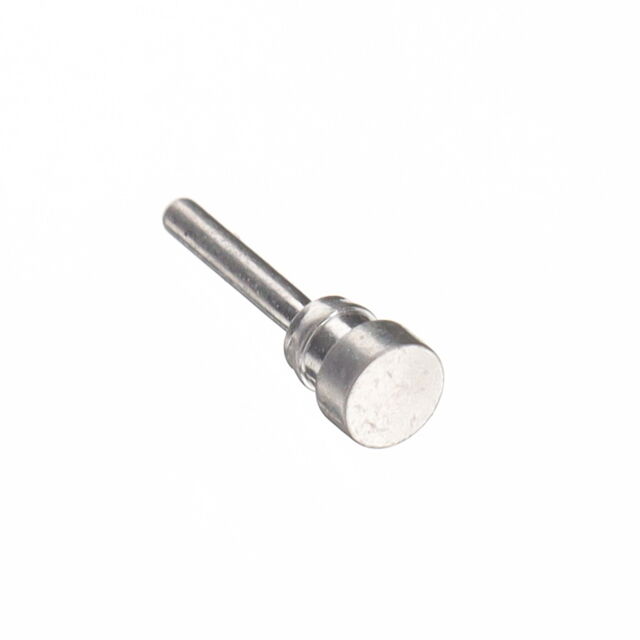

8831-0-00-01-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
8831-0-00-01-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8831-0-00-01-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 5.39 mm |
| Length - Above Flange [x] | 0.212 in |
| Length - Overall [x] | 6.15 mm |
| Length - Overall [x] | 0.242 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.025 in |
| Pin Size - Above Flange [diameter] | 0.64 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| 3000 | $ 0.37 | |||
Description
General part information
8831-0 Series
PC Pin Terminal Connector Through Hole Tin 0.025" (0.64mm) Dia
