Technical Specifications

Parameters and characteristics for this part

Specification	LTC4216IMS#PBF

Applications	General Purpose
Current - Supply	1.6 mA
Features	UVLO, Latched Fault
Internal Switch(s)	False
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

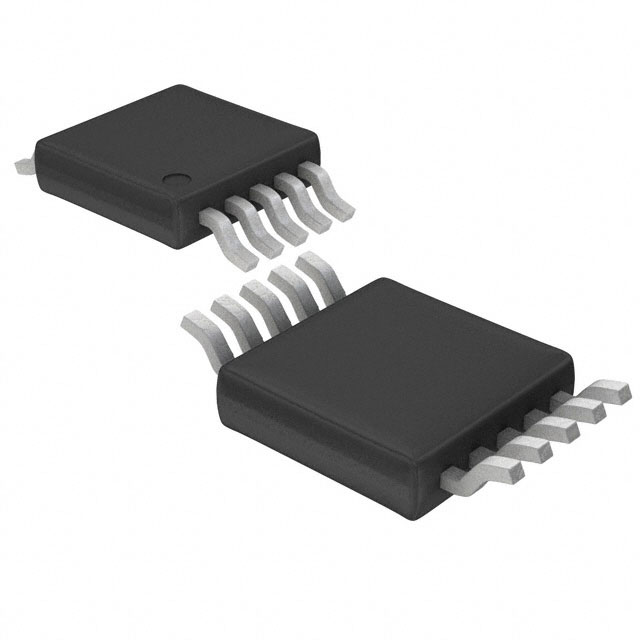

Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Programmable Features	Fault Timeout, Current Limit
Supplier Device Package	10-MSOP
Type	Hot Swap Controller
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	2.3 V

LTC4216 Series

Ultralow Voltage Hot Swap Controller

Part	Mounting Type	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Package / Case	Package / Case [x]	Package / Case [x]	Programmable Features	Current - Supply	Supplier Device Package	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Applications
Analog Devices LTC4216IMS#PBF	Surface Mount	Hot Swap Controller	2.3 V	6 V	Latched Fault UVLO	10-MSOP 10-TFSOP	3 mm	0.118 in	Current Limit Fault Timeout	1.6 mA	10-MSOP	1	85 °C	-40 °C	General Purpose
Analog Devices LTC4216IDE	Surface Mount	Hot Swap Controller	2.3 V	6 V	UVLO	12-WFDFN Exposed Pad			Auto Retry Current Limit Fault Timeout Latched Fault	1.6 mA	12-DFN (4x3)	1	85 °C	-40 °C	General Purpose
Analog Devices LTC4216IDE#PBF	Surface Mount	Hot Swap Controller	2.3 V	6 V	UVLO	12-WFDFN Exposed Pad			Auto Retry Current Limit Fault Timeout Latched Fault	1.6 mA	12-DFN (4x3)	1	85 °C	-40 °C	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	82	$ 3.68

Description

General part information

LTC4216 Series

The LTC4216 is a positive low voltage Hot Swap™controller that allows a board to be safely inserted and removed from a live backplane. It controls load voltages ranging from 0V to 6V and isolates a severe fault with instantaneous analog current limiting.An internal high side switch driver controls the gate of an external N-channel MOSFET. An adjustable soft-start limits the rate of change of the inrush current at start-up for a large load capacitor. Together with an analog current limit amplifier, an electronic circuit breaker with adjustable response time provides dual level overcurrent protection. No external gate capacitor is required for the analog current limit loop compensation.The FB pin monitors the output supply voltage and signals theRESEToutput pin. An ON pin provides on/off control and aFAULTpin indicates the fault status. The LTC4216 is available in the 10-lead MSOP and 12-lead (4mm × 3mm) DFN packages.ApplicationsElectronic Circuit BreakerLive Board Insertion and RemovalIndustrial High Side Switch/Circuit BreakerOptical Networking
