Q-3404E0005084I

Active

Amphenol Custom Cable

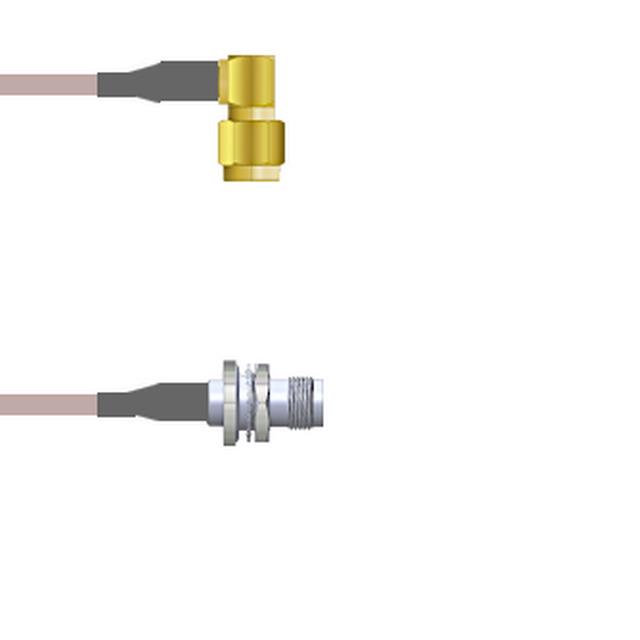

COAX CABLE SMA TO TNC 7'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO TNC 7'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3404E0005084I

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	Overall Impedance	2nd Connector	Features	Cable Impedance	1st Connector	Length	Length	Length	Cable Type	2nd Contact Gender	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Connector Mounting Type	1st Connector Mounting Type	Color	Style	1st Contact Gender	Connector Impedance
Amphenol Custom Cable Q-3404E0005084I	50 Ohms	TNC Jack	Shielded	50 Ohms	Right Angle SMA Plug	84 in	2.1 m	7 ft	RG-316	Female	Bulkhead - Front Side Nut	3 GHz	Panel Mount	Free Hanging (In-Line)	Copper	SMA to TNC	Male	50 Ohms
Amphenol Custom Cable Q-3404E0005072I	50 Ohms	TNC Jack	Shielded	50 Ohms	Right Angle SMA Plug	72 in	1.8 m	6 ft	RG-316	Female	Bulkhead - Front Side Nut	3 GHz	Panel Mount	Free Hanging (In-Line)	Copper	SMA to TNC	Male	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-316 84.0" (2.1m) 7.0'
