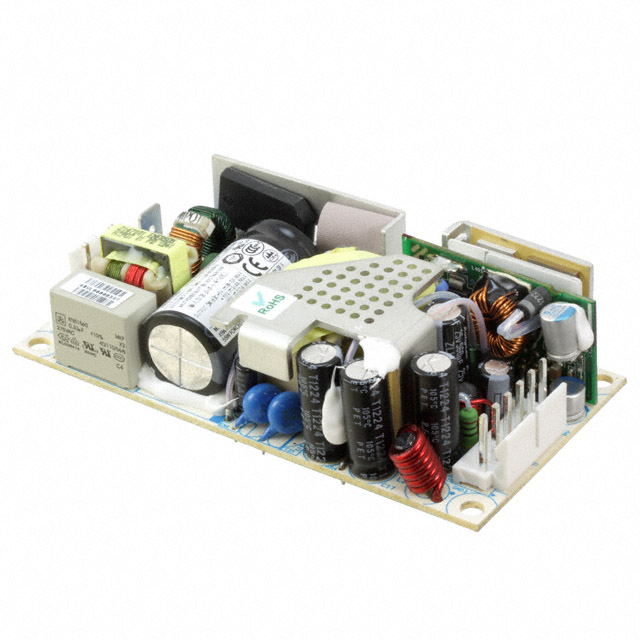

NPT43-M

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/15V/-15V 5A/2A/0.5A 45W 9-PIN

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/15V/-15V 5A/2A/0.5A 45W 9-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	NPT43-M

Applications	ITE (Commercial), Medical
Approval Agency	CE, CB
Current - Output 1	5 A
Current - Output 2	2 A
Current - Output 3	500 mA
Efficiency	75 %
Features	Universal Input, DC Input Capable
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	0 °C
Power (Watts)	55 W
Power (Watts)	45 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	1.1 in
Size / Dimension [z]	28 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	5 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

Part	Applications	Voltage - Output 3	Power (Watts)	Power (Watts)	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Minimum Load Required	Voltage - Output 2	Number of Outputs	Approval Agency	Efficiency	Current - Output 1	Type	Mounting Type	Current - Output 3	Features	Current - Output 2
ARTESYN / Advanced Energy NPT43-M	ITE (Commercial) Medical	-15 V	55 W	45 W	5 V	90 VAC	264 VAC	80 C	0 °C	50.8 mm	1.1 in	2 in	28 mm	101.6 mm	4 in		15 V	3	CB CE	75 %	5 A	Open Frame	Chassis Mount	500 mA	DC Input Capable Universal Input	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5V 15V -15V 90 ~ 264 VAC Input
