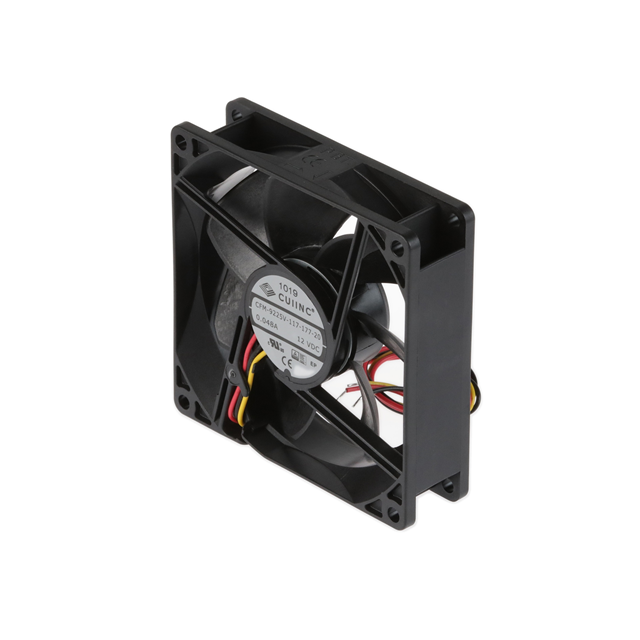

CFM-9225V-117-177-20

Active

CUI Devices

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-9225V-117-177-20

Active

CUI Devices

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-9225V-117-177-20

Air Flow	0.798 mł/min
Air Flow	28.5 CFM
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	0.054 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	17.7 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.65 W
RPM	1700 RPM
Static Pressure	0.05 in H2O
Static Pressure	12.4 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	4.5 V
Weight	92.08 g
Weight	0.203 lb
Width [y]	25 mm

CFM-9225 Series

Part	Air Flow	Air Flow	Termination	Current Rating (Amps)	Lifetime @ Temp.	Weight	Weight	Noise	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Voltage - Rated	RPM	Approval Agency	Static Pressure	Static Pressure	Features	Width [y]	Fan Type
CUI Devices CFM-9225V-139-416-11	1.82 mł/min	65 CFM	3 Wire Leads	0.265 A	70000 Hrs	0.234 lb	106.14 g	41.6 dB(A)	3.18 W	13.8 VDC	6 VDC	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	12 VDC	3900 RPM	CE cURus TUV	0.25 in H2O	62.3 Pa	Auto Restart	25 mm	Tubeaxial
CUI Devices CFM-9225V-227-320-11			3 Wire Leads	0.064 A	70000 Hrs	0.203 lb	92.08 g	32 dB	1.54 W			70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	24 VDC	2700 RPM	CE cURus TUV	0.13 in H2O	32.5 Pa	Auto Restart	25 mm	Tubeaxial
CUI Devices CFM-9225V-227-320			2 Wire Leads	0.064 A	70000 Hrs	0.203 lb	92.08 g	32 dB	1.54 W			70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	24 VDC	2700 RPM	CE cURus TUV	0.13 in H2O	32.5 Pa	Auto Restart	25 mm	Tubeaxial
CUI Devices CFM-9225V-117-177-20	0.798 mł/min	28.5 CFM	3 Wire Leads	0.054 A	70000 Hrs	0.203 lb	92.08 g	17.7 dB(A)	0.65 W	13.8 VDC	4.5 V	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	12 VDC	1700 RPM	CE cURus TUV	0.05 in H2O	12.4 Pa	Auto Restart Speed Sensor (Tach)	25 mm	Tubeaxial
CUI Devices CFM-9225V-117-177	0.798 mł/min	28.5 CFM	2 Wire Leads	0.054 A	70000 Hrs	0.203 lb	92.08 g	17.7 dB(A)	0.65 W	13.8 VDC	4.5 V	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	12 VDC	1700 RPM	CE cURus TUV	0.05 in H2O	12.4 Pa	Auto Restart	25 mm	Tubeaxial
CUI Devices CFM-9225V-224-280	1.11 m³/min	39.5 CFM	2 Wire Leads	0.051 A	70000 Hrs	0.203 lb	92.08 g	28 dB	1.23 W			70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	24 VDC	2400 RPM	CE cURus TUV	0.1 in H2O	24.9 Pa	Auto Restart	25 mm	Tubeaxial
CUI Devices CFM-9225V-124-280-20	1.11 m³/min	39.5 CFM	3 Wire Leads	0.087 A	70000 Hrs	0.203 lb	92.08 g	28 dB	1.05 W	13.8 VDC	4.5 V	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	12 VDC	2400 RPM	CE cURus TUV	0.1 in H2O	24.9 Pa	Auto Restart Speed Sensor (Tach)	25 mm	Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.05
		10	$ 3.98

Description

General part information

CFM-9225 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H omniCOOL™ Magnetic Sleeve 28.5 CFM (0.798m³/min) 3 Wire Leads
