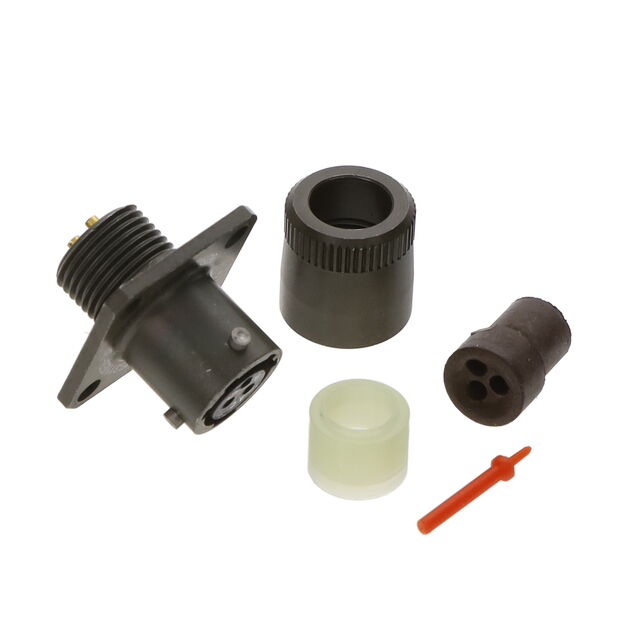

MS3110E8-3S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3110E8-3S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3110E8-3S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-3
Shielding	Unshielded
Voltage Rating	600 VAC

MS3110E8 Series

Part	Primary Material	Number of Positions	Insert Material	Color	Connector Type	Applications	Contact Finish - Mating	Qualification	Features	Shell Finish	Orientation	Shell Material	Mounting Feature	Shielding	Backshell Material, Plating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Contact Material	Grade	Ingress Protection	Voltage Rating	Current Rating (Amps)
Amphenol Industrial Operations MS3110E8-3P
Amphenol Industrial Operations MS3110E8-4P	Metal	4	Neoprene	Olive Drab	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	MIL-DTL-26482 Series I	Backshell	Olive Drab Chromate over Cadmium	N	Aluminum	Flange	Unshielded	Aluminum Olive Drab Chromate over Cadmium	Bayonet Lock	-55 °C	125 °C	8-4	Copper Alloy	Military	Environment Resistant
Amphenol Industrial Operations MS3110E8-2S
Amphenol Industrial Operations MS3110E8-3S	Metal		Neoprene	Olive Drab	Receptacle Female Sockets	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	MIL-DTL-26482 Series I	Backshell	Olive Drab Chromate over Cadmium	N	Aluminum	Flange	Unshielded		Bayonet Lock	-55 °C	125 °C	8-3	Copper Alloy	Military	Environment Resistant	600 VAC	7.5 A
Amphenol Industrial Operations MS3110E8-4S	Metal	4	Neoprene	Olive Drab	Receptacle Female Sockets	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	MIL-DTL-26482 Series I	Backshell	Olive Drab Chromate over Cadmium	N	Aluminum	Flange	Unshielded	Aluminum Olive Drab Chromate over Cadmium	Bayonet Lock	-55 °C	125 °C	8-4	Copper Alloy	Military	Environment Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.08
		10	$ 61.56
		25	$ 59.19
		50	$ 57.22
		100	$ 54.06

Description

General part information

MS3110E8 Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
