HF1016414
ActiveHoffman Enclosures, Inc.

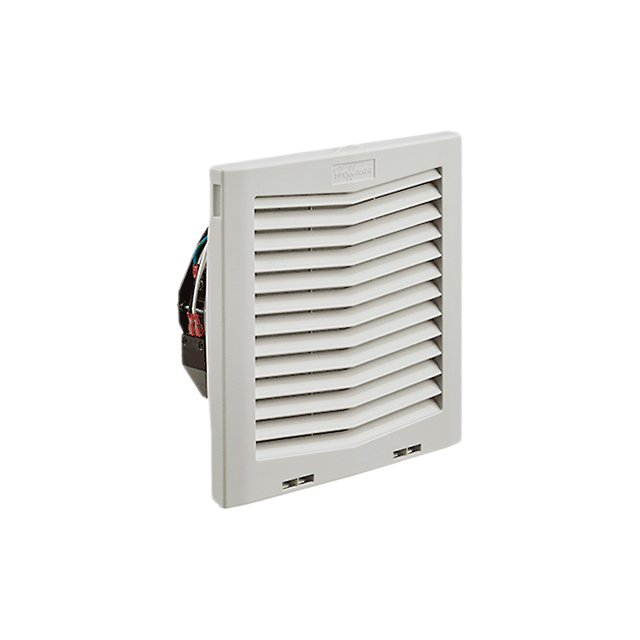

IP54 10" FILTER FAN 115V 7035, B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HF1016414
ActiveHoffman Enclosures, Inc.
IP54 10" FILTER FAN 115V 7035, B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HF1016414 |
|---|---|
| Size / Dimension [x] | 4.69 " |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 10.16 in |
| Size / Dimension [y] | 258 mm |
| Size / Dimension [z] | 10.12 in |
| Size / Dimension [z] | 257 mm |
| Specifications | SQUARE, AC, Fan |
| Specifications | 159 CFM |
| Type | Fan |
| Voltage - Input | 115 VAC |
| Weight | 1.4 kg |
| Weight | 3.1 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 454.78 | |
| 10 | $ 405.40 | |||
| 25 | $ 387.25 | |||
Description
General part information
HF1016 Series
Rack Fan, AC, Square, 159 CFM 4.69" L x 10.16" W x 10.12" H (119.0mm x 258.0mm x 257.0mm)
