346-058-521-201
ActiveEDAC Inc.

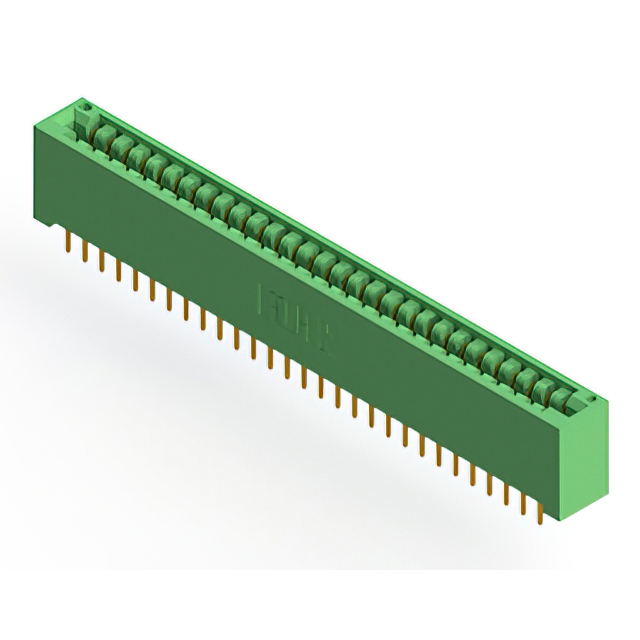

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-058-521-201
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-058-521-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-058 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Mounting Type | Contact Finish | Color | Card Type | Number of Positions/Bay/Row | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Positions | Gender | Contact Material | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole Right Angle | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder Wire Wrap | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 0.125 in | 3.18 mm | 2 | |
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder | 0.125 in | 3.18 mm | 2 | ||||
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder Eyelet(s) | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | 2 | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder | 0.125 in | 3.18 mm | 2 | ||||
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 0.125 in | 3.18 mm | 2 | |
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Board Edge Straddle Mount | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 0.125 in | 3.18 mm | 2 | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole Right Angle | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | 2 | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Through Hole | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 0.125 in | 3.18 mm | 2 | |
EDAC Inc. | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Dual | Board Edge Straddle Mount | Gold | Green | Non Specified - Dual Edge | 29 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 58 | Female | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | 2 | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-058 Series
58 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
