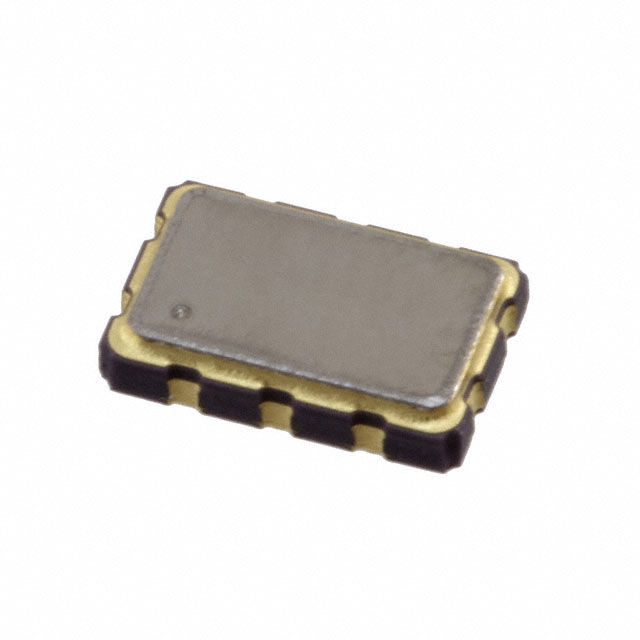

XUP536156.250JS6I

Active

Renesas Electronics Corporation

XTAL OSC XO 156.2500MHZ LVPECL

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

XTAL OSC XO 156.2500MHZ LVPECL

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Frequency Stability	Base Resonator	Package / Case	Function	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Voltage - Supply	Output	Frequency
Renesas Electronics Corporation XUP536156.250JS6I	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	Surface Mount	25 ppm	Crystal	6-SMD No Lead	Enable/Disable	XO (Standard)	85 °C	-40 °C	115 mA	3.3 V	LVPECL	156.25 MHz
Renesas Electronics Corporation XUP536156.250000I	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	Surface Mount	25 ppm	Crystal	6-SMD No Lead	Enable/Disable	XO (Standard)	85 °C	-40 °C	115 mA	3.3 V	LVPECL	156.25 MHz
Renesas Electronics Corporation XUP536400.000000I	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	Surface Mount	25 ppm	Crystal	6-SMD No Lead	Enable/Disable	XO (Standard)	85 °C	-40 °C	128 mA	3.3 V	LVPECL	400 MHz
Renesas Electronics Corporation XUP536100.000000X	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	Surface Mount	25 ppm	Crystal	6-SMD No Lead	Enable/Disable	XO (Standard)	70 °C	-20 C	115 mA	3.3 V	LVPECL	100 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
