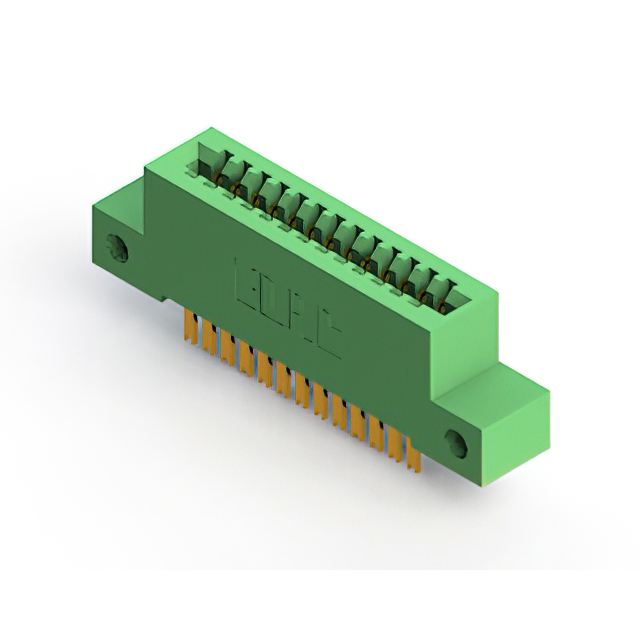

342-026-500-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-026-500-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-026-500-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
342-026 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Color | Number of Positions | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Type | Material - Insulation | Read Out | Contact Finish | Pitch [x] | Pitch [x] | Card Type | Mounting Type | Gender | Termination | Contact Material | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 26 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Cantilever | Polyester Thermoplastic | Dual | Gold | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Through Hole | Female | Solder | Copper Alloy | 13 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 26 | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Cantilever | Polyester Thermoplastic | Dual | Gold | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Through Hole | Female | Solder Eyelet(s) | Copper Alloy | 13 | 3.25 mm | 0.128 " | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 26 | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Cantilever | Polyester Thermoplastic | Dual | Gold | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Board Edge Straddle Mount | Female | Solder | Copper Alloy | 13 | 3.25 mm | 0.128 " | Card Extender |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 1 | Green | 26 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Cantilever | Polyester Thermoplastic | Single | Gold | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Female | Wire Wrap | Copper Alloy | 26 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 26 | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Cantilever | Polyester Thermoplastic | Dual | Gold | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Through Hole | Female | Solder Eyelet(s) | Copper Alloy | 13 | 3.25 mm | 0.128 " | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 1 | Green | 26 | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Cantilever | Polyester Thermoplastic | Single | Gold | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole Right Angle | Female | Solder Wire Wrap | Copper Alloy | 26 | 3.96 mm | 0.156 in | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 26 | 10 Áin | 0.25 Ám | 2 | Cantilever | Polyester Thermoplastic | Dual | Gold | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Through Hole | Female | Solder | Copper Alloy | 13 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 1 | Green | 26 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Cantilever | Polyester Thermoplastic | Single | Gold | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Female | Wire Wrap | Copper Alloy | 26 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 26 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Cantilever | Polyester Thermoplastic | Dual | Gold | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Through Hole | Female | Solder | Copper Alloy | 13 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 1 | Green | 26 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Cantilever | Polyester Thermoplastic | Single | Gold | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Female | Solder | Copper Alloy | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.27 | |
Description
General part information
342-026 Series
26 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
