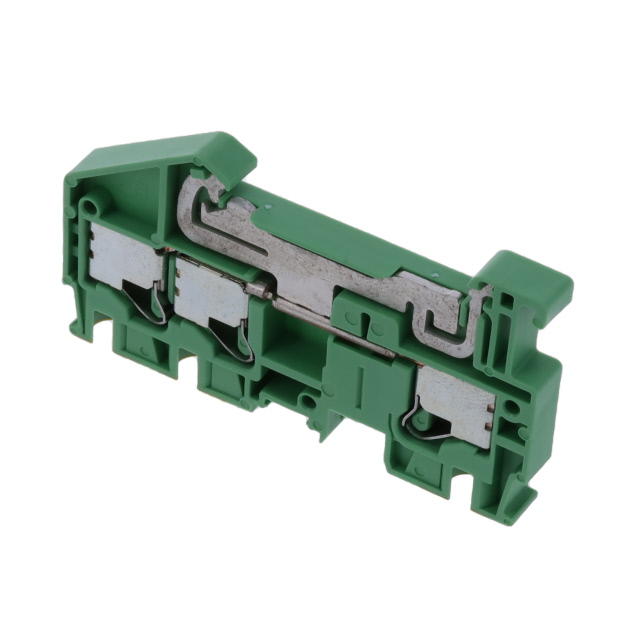

XW5G-P4.0-1.2-1

Active

Omron Electronics Inc-EMC Div

TERM BLK GND PUSH 4MM 1:2 2TIER

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

TERM BLK GND PUSH 4MM 1:2 2TIER

Technical Specifications

Parameters and characteristics for this part

Specification	XW5G-P4.0-1.2-1

Color	Green, Yellow
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Stripping Length [x]	12 mm
Terminal - Width [y]	6.2 mm
Termination Style	Push In
Type	Ground, Earth
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²
Wire Gauge or Range - mm² [Min]	0.25 mm²

Part	Terminal - Width [y]	Termination Style	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Material - Insulation	Number of Levels	Number of Levels	Color	Voltage - UL	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Stripping Length [x]	Material Flammability Rating	Type
Omron Electronics Inc-EMC Div XW5G-P4.0-1.1-2	6.2 mm	Push In	10 AWG	24 AWG	Nylon Polyamide (PA)	2	Connected	Green Yellow	600 V	500 V	0.25 mm²	6 mm²	4	12 mm	UL94 V-0	Ground Earth
Omron Electronics Inc-EMC Div XW5G-P4.0-1.2-1	6.2 mm	Push In	10 AWG	24 AWG	Nylon Polyamide (PA)	1		Green Yellow	600 V	800 V	0.25 mm²	6 mm²		12 mm	UL94 V-0	Ground Earth

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 3 Position Ground, Earth Green, Yellow 10-24 AWG
