Q2-Z-5/8-01-MS50FT

Active

Qualtek

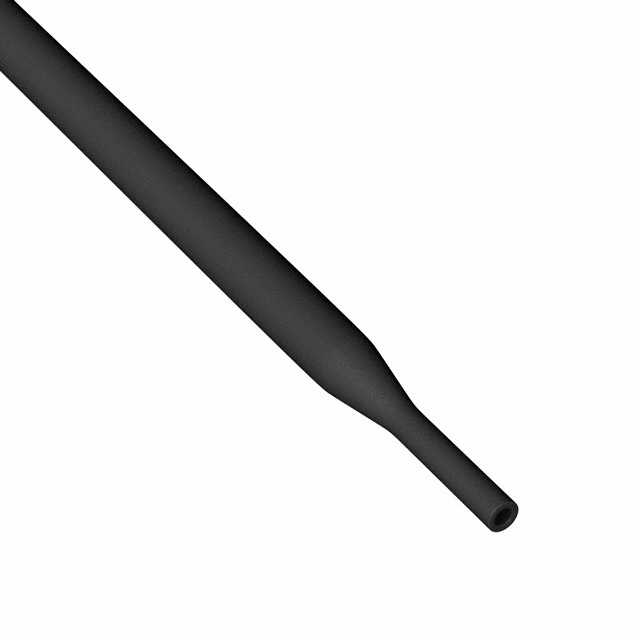

HEATSHRINK 0.63" X 50' BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 0.63" X 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-5/8-01-MS50FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.315 in
Inner Diameter - Recovered [diameter]	8 mm
Inner Diameter - Supplied [diameter]	16 mm
Inner Diameter - Supplied [diameter]	0.63 in
Length	15.2 m
Length	50 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.027 "
Recovered Wall Thickness	0.69 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Type	Recovered Wall Thickness	Recovered Wall Thickness	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Shrinkage Ratio	Length [x]	Length [x]	Length	Length	Length	Length
Qualtek Q2-Z-5/8-01-QB48IN-5	144 Months	0.315 in	8 mm	Black	Tubing Flexible	0.027 "	0.69 mm	Polyolefin (PO)	16 mm	0.63 in	-55 °C	125 °C	Flame Retardant	-50 °F -10 °C	40 °C	70 °C	2 to 1	1.22 m	4 ft
Qualtek Q2-Z-5/8-01-MS50FT	144 Months	0.315 in	8 mm	Black	Tubing Flexible	0.027 "	0.69 mm	Polyolefin (PO)	16 mm	0.63 in	-55 °C	125 °C	Flame Retardant	-50 °F -10 °C	40 °C	70 °C	2 to 1			15.2 m	50 ft
Qualtek Q2-Z-5/8-01-SS200FT	144 Months	0.315 in	8 mm	Black	Tubing Flexible	0.027 "	0.69 mm	Polyolefin (PO)	16 mm	0.63 in	-55 °C	125 °C	Flame Retardant	-50 °F -10 °C	40 °C	70 °C	2 to 1	61 m	200 ft
Qualtek Q2-Z-5/8-01-QB6IN-14	144 Months	0.315 in	8 mm	Black	Tubing Flexible	0.027 "	0.69 mm	Polyolefin (PO)	16 mm	0.63 in	-55 °C	125 °C	Flame Retardant	-50 °F -10 °C	40 °C	70 °C	2 to 1			152.4 mm		6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.630" (16.00mm) 2 to 1 Black 50.0' (15.2m)
