11307160520

Active

HARTING Technology Group

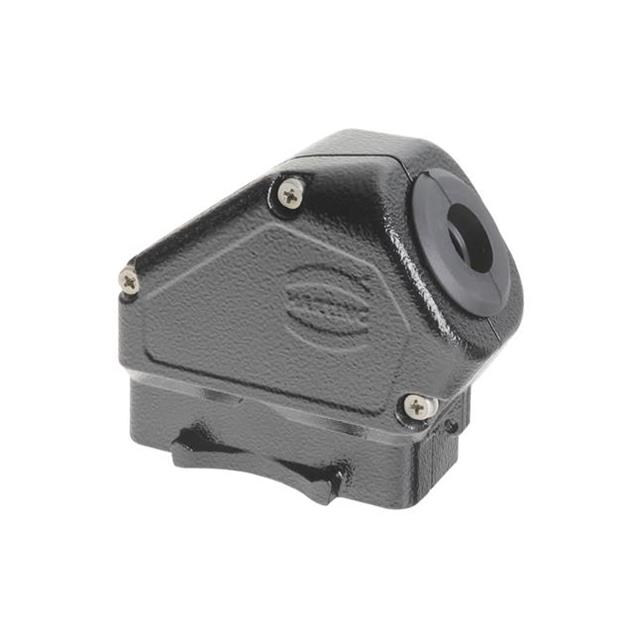

HOOD, SIDE ENTRY, 16B, 2 LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

HOOD, SIDE ENTRY, 16B, 2 LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	11307160520

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP54 - Dust Protected, Water Resistant
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	112.1 mm
Size / Dimension [x]	4.413 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	3.917 in
Size / Dimension [z]	99.5 mm
Style	Side Entry

Part	Housing Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Ingress Protection	Housing Finish	Housing Color
HARTING Technology Group 11307160520	Aluminum Die Cast	112.1 mm	1.693 in	3.917 in	43 mm	99.5 mm	4.413 in	16 B	Hood	125 °C	-40 °C	Side Entry	IP54 - Dust Protected Water Resistant	Powder Coated	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry 16B IP54 - Dust Protected, Water Resistant
