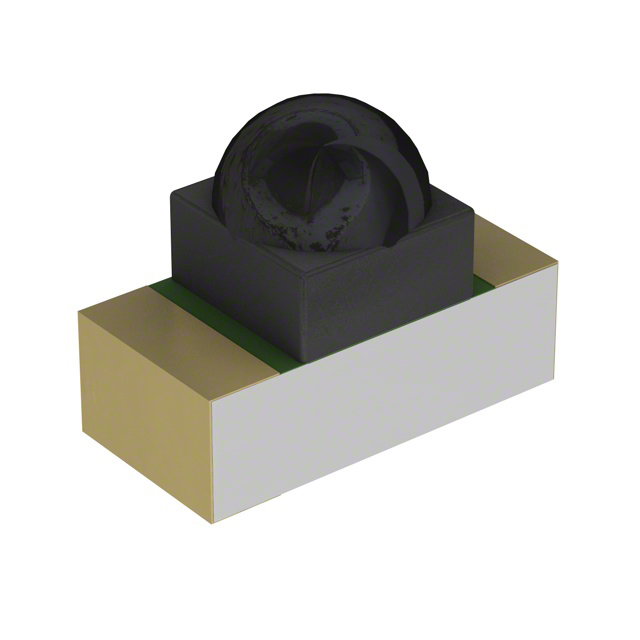

PT26-51B/TR8
ActiveEverlight Electronics Co Ltd
SENSOR 940NM TOP/SIDE VIEW 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT26-51B/TR8
ActiveEverlight Electronics Co Ltd
SENSOR 940NM TOP/SIDE VIEW 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT26-51B/TR8 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Universal |
| Package / Case | 1206 (3216 Metric) |
| Power - Max [Max] | 75 mW |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.36 | |||
| 100 | $ 0.24 | |||
| Tape & Reel (TR) | 1500 | $ 0.18 | ||
| 3000 | $ 0.16 | |||
| 7500 | $ 0.15 | |||
| 10500 | $ 0.15 | |||
| 37500 | $ 0.15 | |||
Description
General part information
PT26-51 Series
Phototransistors 940nm Universal 1206 (3216 Metric)
