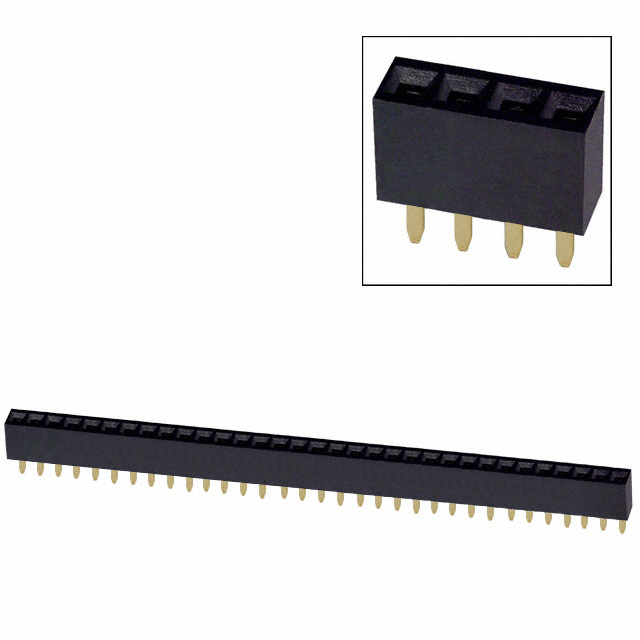

PPPC331LFBN

Obsolete

Sullins Connector Solutions

CONN HDR 33POS 0.1 GOLD PCB

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 33POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC331LFBN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	33
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions Loaded	Insulation Color	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Contact Type	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Post	Connector Type	Contact Finish Thickness - Mating	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Voltage Rating	Contact Shape	Contact Finish - Post	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Termination	Contact Length - Post
Sullins Connector Solutions PPPC331LFBN-RC	All	Black	Push-Pull	33	0.335 "	8.51 mm	Female Socket	3 A	Phosphor Bronze	Gold	Flash	Header	Flash	UL94 V-0	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	1	250 VDC	Square	Gold	Polyester	3.2 mm	0.126 in	Solder
Sullins Connector Solutions PPPC331LGBN	All	Black	Push-Pull	33	0.1 in	2.54 mm	Female Socket	3 A	Phosphor Bronze	Gold	Flash	Header	Flash	UL94 V-0	Through Hole Right Angle	0.1 in	2.54 mm	-40 °C	105 ░C	1	250 VDC	Square	Gold	Polyester	3.15 mm		Solder	0.124 "
Sullins Connector Solutions PPPC331LFBN	All	Black	Push-Pull	33	0.335 "	8.51 mm	Female Socket	3 A	Phosphor Bronze	Gold	Flash	Header	Flash	UL94 V-0	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	1	250 VDC	Square	Gold	Polyester	3.2 mm	0.126 in	Solder
Sullins Connector Solutions PPPC331KFXC	All	Black	Push-Pull	33	0.28 in	7.1 mm	Female Socket	3 A	Phosphor Bronze	Gold	Flash	Header Top or Bottom Entry	Flash	UL94 V-0	Surface Mount	0.1 in	2.54 mm	-40 °C	105 ░C	1	250 VDC	Square	Gold	Polyester			Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

33 Position Header Connector 0.100" (2.54mm) Through Hole Gold
