A3UL-TBU-3A1C-M

Active

Omron Electronics Inc-EMC Div

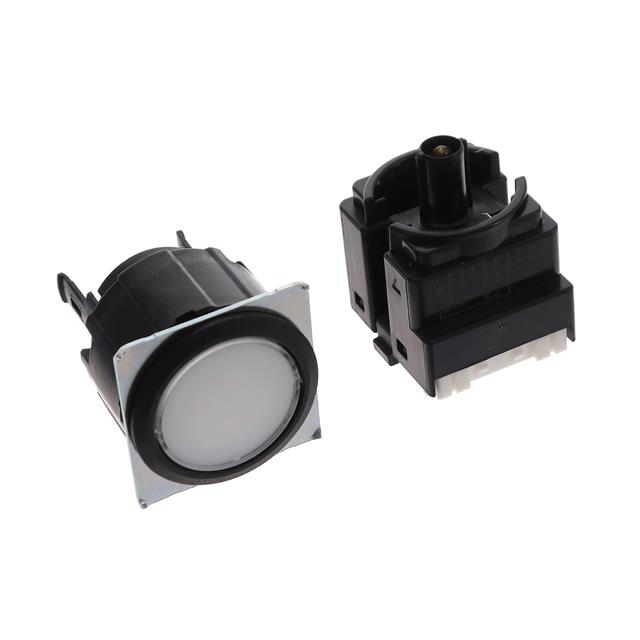

SWITCH PUSHBUTTON SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3UL-TBU-3A1C-M

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3UL-TBU-3A1C-M

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Illumination Type, Color [custom]	LED
Illumination Type, Color [custom]	Umber
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-Mom
Termination Style	Connector
Type	Illuminated, Standard
Voltage Rating - DC	30 V

A3UL-TBU Series

Part	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Ingress Protection	Mechanical Life	Switch Function	Actuator Type	Circuit	Current Rating (Amps)	Actuator Marking	Electrical Life	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Type	Illumination Voltage (Nominal)	Mounting Type
Omron Electronics Inc-EMC Div A3UL-TBU-1A2C-M	Clear	30 V	25.2 mm	IP40	1000000 Cycles	On-Mom	Button Flush Round	DPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	5 VDC	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-3A1C-M-S	Clear	30 V	25.2 mm	IP40	1000000 Cycles	On-Mom	Button Flush Round	SPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	24 V	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-1A1C-M	Clear	30 V	25.2 mm	IP40	1000000 Cycles	On-Mom	Button Flush Round	SPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	5 VDC	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-3A1C-5M-S	Clear	30 V	25.2 mm	IP65	1000000 Cycles	On-Mom	Button Flush Round	SPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	24 V	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-1A1C-5M-S	Clear	30 V	25.2 mm	IP65	1000000 Cycles	On-Mom	Button Flush Round	SPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	5 VDC	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-1A2C-5M-S	Clear	30 V	25.2 mm	IP65	1000000 Cycles	On-Mom	Button Flush Round	DPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	5 VDC	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-3A1C-M	Clear	30 V	25.2 mm	IP40	1000000 Cycles	On-Mom	Button Flush Round	SPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	24 V	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-2A2C-M-S	Clear	30 V	25.2 mm	IP40	1000000 Cycles	On-Mom	Button Flush Round	DPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	12 VDC	Panel Mount Front
Omron Electronics Inc-EMC Div A3UL-TBU-2A2C-M	Clear	30 V	25.2 mm	IP40	1000000 Cycles	On-Mom	Button Flush Round	DPDT	100 mA	No Marking	200000 Cycles	LED	Umber	Connector	55 °C	-20 C	Illuminated Standard	12 VDC	Panel Mount Front
