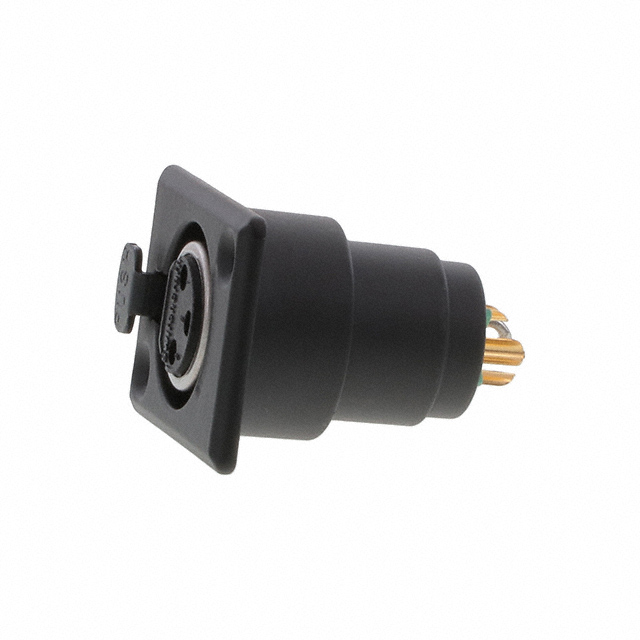

D3FBXAU

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Current Rating (Amps)	Orientation	Features	Contact Material	Color	Connector Type	Voltage Rating	Mounting Feature	Shell Size - Insert	Applications	Primary Material	Insert Material	Contact Finish - Mating	Shell Material
Switchcraft Inc. D3FBAU	Latch Lock	15 A	Keyed	Ground	Phosphor Bronze	Black	Female Sockets Plug	125 VAC	Flange	XLR	Audio Instrumentation	Metal	Polyester	Gold	Stainless Steel
Switchcraft Inc. D3FD	Detent Lock	15 A	Keyed	Ground	Phosphor Bronze	Silver	Female Sockets Plug	125 VAC	Flange	XLR	Audio Instrumentation	Metal	Polyester	Silver	Stainless Steel
Switchcraft Inc. D3FBXAU	Latch Lock	15 A	Keyed	Ground	Phosphor Bronze	Black	Female Sockets Plug	125 VAC	Flange	XLR	Audio Instrumentation	Metal	Polyester	Gold	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.41

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
