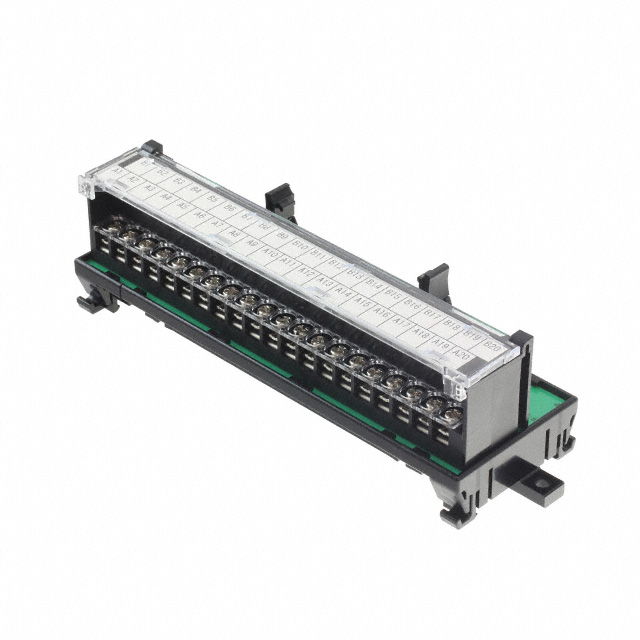

XW2R-J40G-T

Active

Omron Electronics Inc-EMC Div

INTERFACE MOD RCPT 40PS 16-26AWG

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

INTERFACE MOD RCPT 40PS 16-26AWG

Technical Specifications

Parameters and characteristics for this part

Specification	XW2R-J40G-T

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Rectangular
Control Side Connection [custom]	Female
Current Rating (Per Contact)	1 A
Length [x]	5.972 "
Length [x]	151.7 mm
Positions / Poles	40
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	125 VAC
Width [y]	50 mm
Width [y]	1.969 in
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG

Part	Control Side Cable Retainer	Wire Gauge [Max]	Wire Gauge [Min]	Length [x]	Length [x]	Control Side Connection [custom]	Control Side Connection [custom]	Width [y]	Width [y]	Process Side Connection	Current Rating (Per Contact)	Voltage - Rated	Positions / Poles
Omron Electronics Inc-EMC Div XW2R-J40G-T	Latches	26 AWG	16 AWG	5.972 "	151.7 mm	Rectangular	Female	50 mm	1.969 in	Terminal Blocks - Screw Connection	1 A	125 VAC	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Female 16-26 AWG
