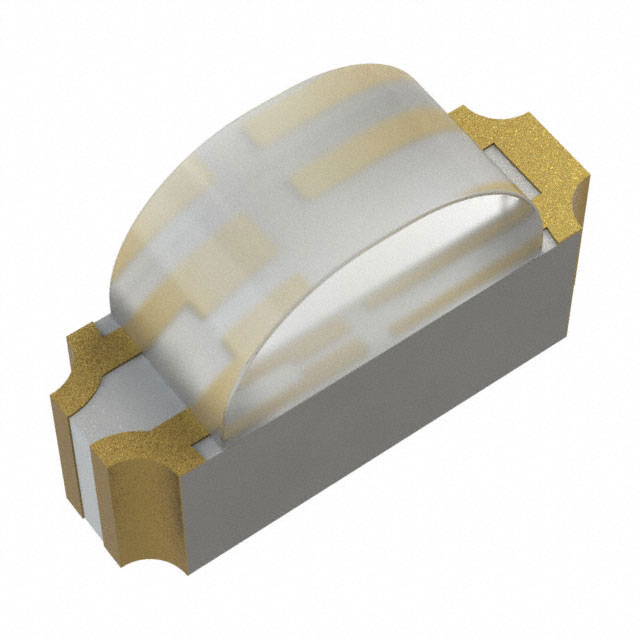

SML-LXR851SISGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LXR851SISGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LXR851SISGC-TR

Color	Red, Green
Configuration	Common Anode
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating [custom]	20 mcd
Millicandela Rating [custom]	50 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2 mm
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2 V, 2.1 V
Wavelength - Peak [custom]	565 nm
Wavelength - Peak [custom]	636 nm

SML-LXR851 Series

Part	Configuration	Supplier Device Package	Viewing Angle	Lens Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Package / Case	Lens Size [x]	Lens Size [y]	Mounting Type	Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Lens Style	Millicandela Rating	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SML-LXR851SISUGWTR	Common Anode	2-SMD	120 °	White	Diffused	2 V 2.2 V	636 nm	574 nm	2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA 20 mA	Green Red	2 mm	3 mm	2 mm	Rectangle with Domed Top	15 mcd 30 mcd
Lumex Opto/Components Inc. SML-LXR851SOC-TR	Standard	Surface Mount Right Angle	160 °	Colorless	Clear	2 V			2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA		2 mm	3 mm	1 mm	Rectangle with Domed Top	75 mcd	610 nm
Lumex Opto/Components Inc. SML-LXR851SRC-TR	Standard	Surface Mount Right Angle	160 °	Colorless	Clear	1.7 V			2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA	Red	2 mm	3 mm	1 mm	Rectangle with Domed Top	33 mcd	660 nm
Lumex Opto/Components Inc. SML-LXR851SGC-TR	Standard	Surface Mount Right Angle	120 °	Colorless	Clear	2.1 V			2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA	Green	2 mm	3 mm	1 mm	Rectangle with Domed Top	16 mcd	565 nm
Lumex Opto/Components Inc. SML-LXR851SISGC-TR	Common Anode	SMD	120 °	Colorless	Clear	2 V 2.1 V	636 nm	565 nm	2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA 20 mA	Green Red	2 mm	3 mm	1 mm	Rectangle with Domed Top			20 mcd	50 mcd
Lumex Opto/Components Inc. SML-LXR851SGSIC-TR	Common Anode	2-SMD	120 °	Colorless	Clear	2 V 2.2 V	636 nm	565 nm	2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA 20 mA	Green Red	2 mm	3 mm	1 mm	Rectangle with Domed Top			20 mcd	50 mcd
Lumex Opto/Components Inc. SML-LXR851USBC-TR	Standard	Surface Mount Right Angle	160 °	Colorless	Clear	3.5 V			2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA	Blue	2 mm	3 mm	1 mm	Rectangle with Domed Top	30 mcd
Lumex Opto/Components Inc. SML-LXR851SUGC-TR	Standard	Surface Mount Right Angle	160 °	Colorless	Clear	2.2 V			2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA	Green	2 mm	3 mm	1 mm	Rectangle with Domed Top	45 mcd
Lumex Opto/Components Inc. SML-LXR851GC-TR	Standard	Surface Mount Right Angle	160 °	Colorless	Clear	2.2 V			2-SMD No Lead	2 mm	1 mm	Surface Mount Right Angle	20 mA	Green	2 mm	3 mm	1 mm	Rectangle with Domed Top	11 mcd	565 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
		10	$ 0.44
		100	$ 0.29
		500	$ 0.23
		1000	$ 0.21
	Digi-Reel®	1	$ 0.74
		10	$ 0.44
		100	$ 0.29
		500	$ 0.23
		1000	$ 0.21
	Tape & Reel (TR)	2000	$ 0.20
		4000	$ 0.19
		6000	$ 0.18
		10000	$ 0.17
		14000	$ 0.17
		20000	$ 0.17
		50000	$ 0.16

Description

General part information

SML-LXR851 Series

Green, Red LED Indication - Discrete 2.1V Green, 2V Red 2-SMD, No Lead
