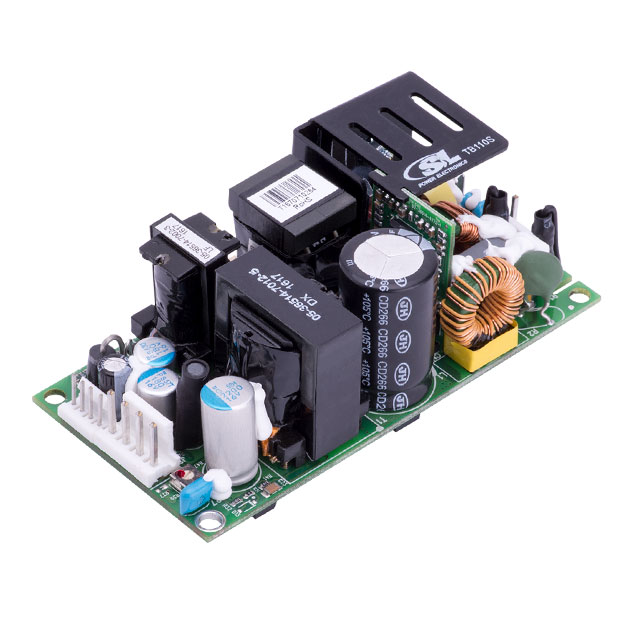

TB110S48K

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 1.6A 110W 10-PIN

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 1.6A 110W 10-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	TB110S48K

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Current - Output 1	1.6 A
Efficiency	89 %
Features	Standby Output, Universal Input, Remote On/Off, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	80 W, 110 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.32 in
Size / Dimension [z]	33.6 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Efficiency	Voltage - Isolation	Features	Applications	Current - Output 1	Voltage - Output 1	Minimum Load Required	Mounting Type	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
SL POWER / Advanced Energy TB110S48K	89 %	3000 V	Adjustable Output Remote On/Off Standby Output Universal Input	ITE (Commercial)	1.6 A	48 V		Chassis Mount	CE cURus DEMKO	80 W 110 W	-20 °C	70 °C	Open Frame	1	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
