25631401RP2

Active

MH Connectors

25631401RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

25631401RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25631401RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Number of Positions Loaded	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Color	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Shape	Connector Type	Contact Material	Contact Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating
MH Connectors 25631401RP2	All	Solder	Flash	2.54 µm	100 µin	14	Black	Tin	4.3 mm	0.169 "	Push-Pull	Through Hole	0.079 in	2 mm	Gold	-40 °C	105 ░C	1	Square	Receptacle	Phosphor Bronze	Female Socket	2.5 mm	0.098 in	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 2.90
Newark	Each	500	$ 3.24
		1000	$ 3.05

General part information

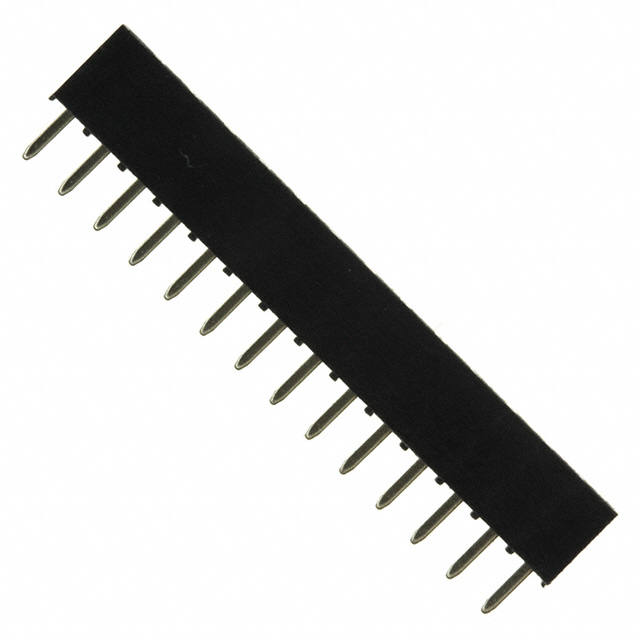

14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
