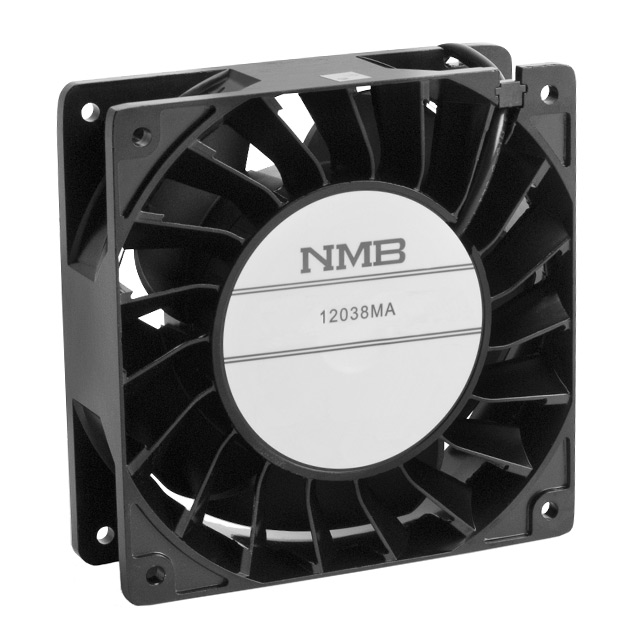

12038MA-48P-GA-00

Active

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 48VDC WIRE

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Air Flow	Air Flow	Bearing Type	Features	Noise	Width [y]	Voltage - Rated [custom]	RPM	Static Pressure	Static Pressure	Material - Blade	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Fan Type	Termination	Approval Agency
NMB TECHNOLOGIES 12038MA-48R-EE-00	38 VDC	60 V	40000 Hrs	120 mm	120 mm	0.82 A	5.19 m³/min	185.5 CFM	Ball	Auto Restart	72 dB(A)	38 mm	48 VDC	9000 RPM	2.97 in H2O	740 Pa	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	39.36 W	Tubeaxial	2 Wire Leads
NMB TECHNOLOGIES 12038MA-48P-GA-00	30 VDC	52.8 VDC	100000 Hrs	119 mm	119 mm				Ball		59.5 dB	38.4 mm	48 VDC				Aluminum	Aluminum	70 °C	70 °C	-10 °C	-10 °C		Tubeaxial	2 Wire Leads	CE CSA UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 181.0 CFM (5.07m³/min) 2 Wire Leads
