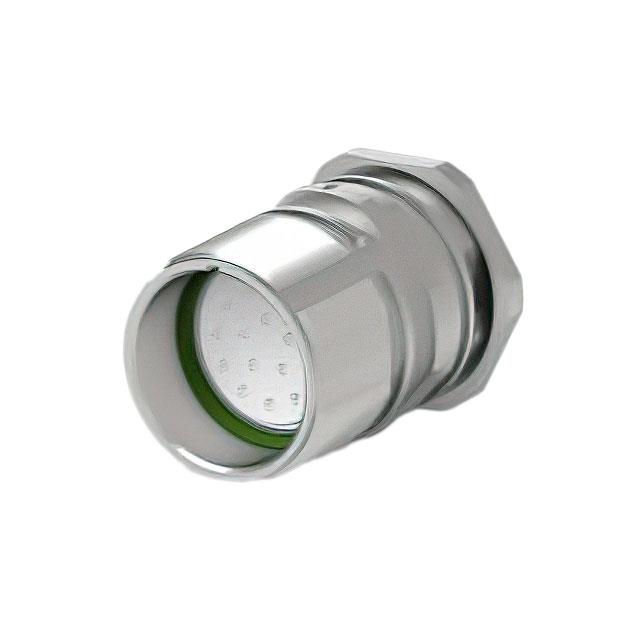

AEA165N00000136000

Active

TE Intercontec

CONN RCPT HSG MALE 16POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 16POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	AEA165N00000136000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 O-Ring, 1 Connector, 1 Nut
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	16
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-16
Shielding	Unshielded
Type	For Male Pins

Part	Mounting Feature	Orientation	Includes	Shell Material	Shielding	Insert Material	Connector Type	Contact Shape	Material Flammability Rating	Ingress Protection	Note	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Positions	Shell Size - Insert	Housing Color	Shell Finish	Fastening Type
TE Intercontec AEA165N00000136000	Bulkhead - Rear Side Nut	Keyed	1 Connector 1 Nut 1 O-Ring	Zinc Die Cast	Unshielded	Polybutylene Terephthalate (PBT)	Receptacle Housing	Circular	UL94 V-0	IP66/IP67	Contacts Not Included	-20 C	130 °C	For Male Pins	16	M23-16	Silver	Nickel	Push-Twist

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Receptacle Housing Panel Mount
