129463 J221000

Active

Belden Inc.

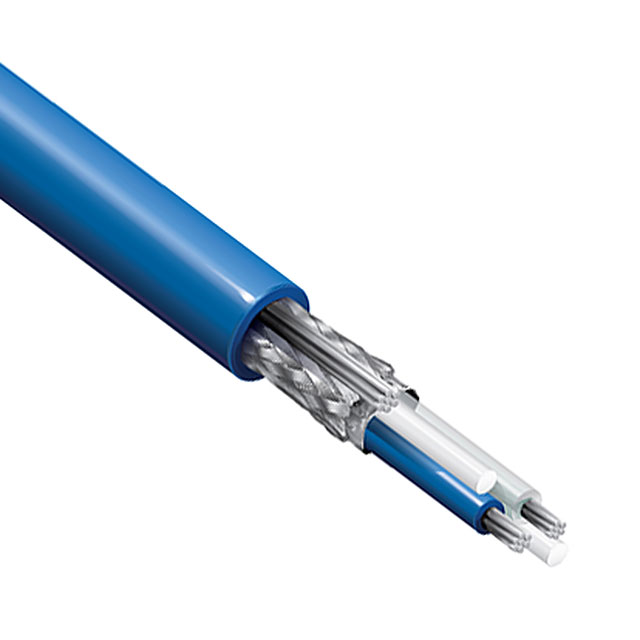

CABLE TWINAXIAL 20AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE TWINAXIAL 20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	129463 J221000

Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	28 AWG
Dielectric Diameter	1.93 mm
Dielectric Diameter	0.076 in
Impedance	120 Ohms
Jacket (Insulation) Diameter [diameter]	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 55 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	20 AWG

Part	Shield Material	Shield Type	Impedance	Cable Type	Jacket Color	Jacket (Insulation) Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Diameter	Dielectric Diameter	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Wire Gauge
Belden Inc. 129463 J221000	Aluminum Copper Tinned	Braid Foil	120 Ohms	Twinaxial	Blue	Poly-Vinyl Chloride (PVC)	55 % 100 %	-40 °C	60 °C	1.93 mm	0.076 in	Copper Tinned	7	28 AWG	6.05 mm	0.238 in	304.8 m	1000 ft	20 AWG
Belden Inc. 129463 J225000	Aluminum Copper Tinned	Braid Foil	120 Ohms	Twinaxial	Blue	Poly-Vinyl Chloride (PVC)	55 % 100 %	-40 °C	60 °C	1.93 mm	0.076 in	Copper Tinned	7	28 AWG	6.05 mm	0.238 in			20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.08

General part information

Twinaxial Cable 20 AWG 1000.0' (304.80m) 120 Ohms
