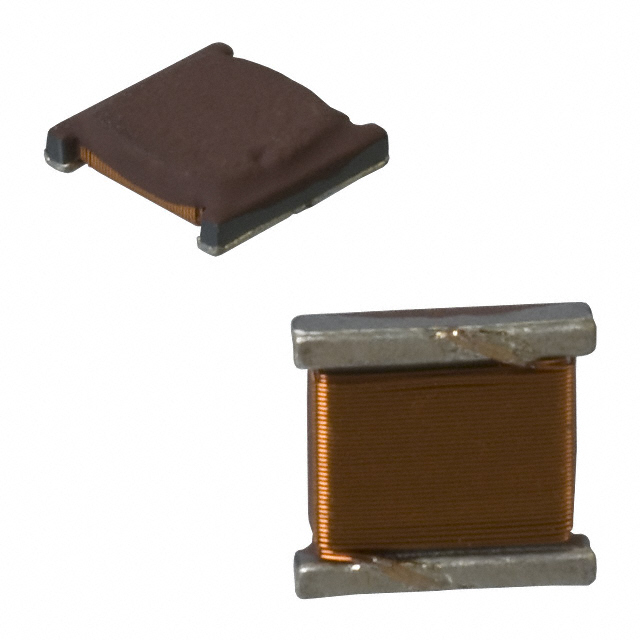

LQY33PN100M02L
ObsoleteMurata Power Solutions Inc.
FIXED IND 10UH 420MA 1 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LQY33PN100M02L
ObsoleteMurata Power Solutions Inc.
FIXED IND 10UH 420MA 1 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LQY33PN100M02L |
|---|---|
| Current Rating (Amps) | 0.42 A |
| DC Resistance (DCR) | 1 Ohm |
| Frequency - Self Resonant | 120 MHz |
| Height - Seated (Max) [Max] [z] | 0.037 " |
| Height - Seated (Max) [Max] [z] | 0.95 mm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Supplier Device Package | 1212 |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LQY33PN Series
10 µH Unshielded Wirewound Inductor 420 mA 1Ohm 1212 (3030 Metric)
