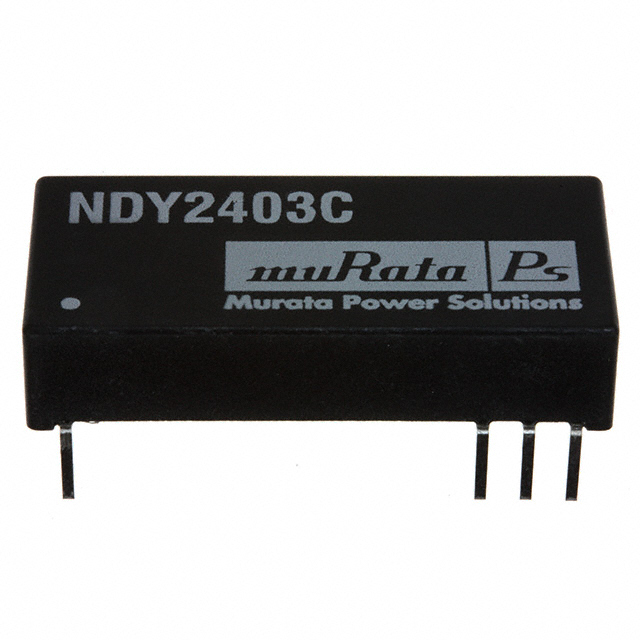

NDY2403C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Type	Efficiency	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Output 1
Murata Power Solutions Inc. NDY2412C	1	24-DIP Module 8 Leads	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3 W	Isolated Module	80 %	250 mA	ITE (Commercial)	1000 V	85 °C	-40 °C	36 V	18 V	Through Hole	12 V
Murata Power Solutions Inc. NDY2409C	1	24-DIP Module 8 Leads	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3 W	Isolated Module	78 %	333 mA	ITE (Commercial)	1000 V	85 °C	-40 °C	36 V	18 V	Through Hole	9 V
Murata Power Solutions Inc. NDY2405C	1	24-DIP Module 8 Leads	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3 W	Isolated Module	70 %	600 mA	ITE (Commercial)	1000 V	85 °C	-40 °C	36 V	18 V	Through Hole	5 V
Murata Power Solutions Inc. NDY2403C	1	24-DIP Module 8 Leads	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3 W	Isolated Module	70 %	909 mA	ITE (Commercial)	1000 V	85 °C	-40 °C	36 V	18 V	Through Hole	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 909mA 18V - 36V Input
