ALH685K251A082

Active

Cornell Dubilier Knowles

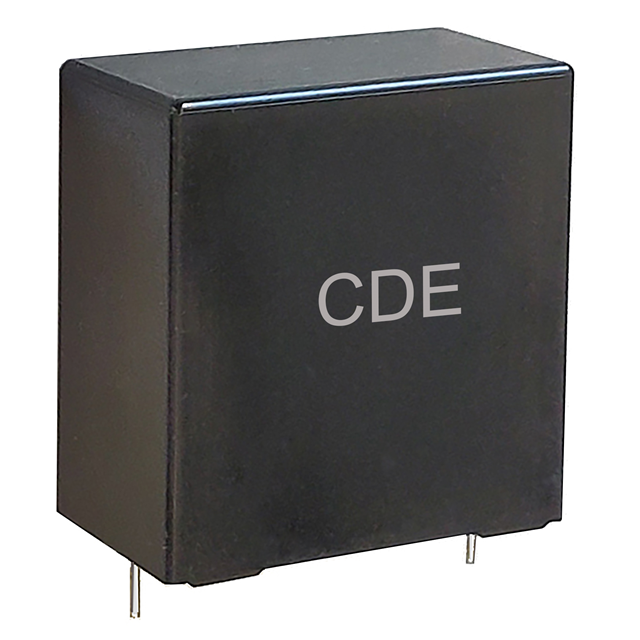

CAP FILM 6.8UF 10% 250VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALH685K251A082

Active

Cornell Dubilier Knowles

CAP FILM 6.8UF 10% 250VAC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALH685K251A082

Applications	EMI, RFI Suppression, Automotive
Capacitance	6.8 ÁF
Dielectric Material	Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.9 mOhms
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max) [Max] [z]	1.488 in
Height - Seated (Max) [Max] [z]	37.8 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	0.866 in
Size / Dimension [y]	22 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V

ALH Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Mounting Type	Ratings	Voltage Rating - AC	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	ESR (Equivalent Series Resistance)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Capacitance	Dielectric Material	Lead Spacing	Lead Spacing
Cornell Dubilier Knowles ALH685K251A082	0.866 in	32 mm	22 mm	1.26 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	250 V	10 %	1.488 in	37.8 mm	PC Pins	4.9 mOhms	Radial	-40 °C	105 ░C	Automotive EMI RFI Suppression	6.8 ÁF	Polypropylene (PP)	27.5 mm	1.083 in
Cornell Dubilier Knowles ALH505K401B064	1.102 in	42.5 mm	28 mm	1.673 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	400 V	10 %	1.488 in	37.8 mm	PC Pins	6.2 mOhms	Radial - 4 Leads	-40 °C	105 ░C	Automotive EMI RFI Suppression	5 µF	Polypropylene (PP)	37.5 mm	1.476 in
Cornell Dubilier Knowles ALH256K251C064	1.181 in	57.5 mm	30 mm	2.264 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	250 V	10 %	1.811 in	46 mm	PC Pins	5.7 mOhms	Radial - 4 Leads	-40 °C	105 ░C	Automotive EMI RFI Suppression	25 µF	Polypropylene (PP)	52.5 mm	2.067 in
Cornell Dubilier Knowles ALH206K161B064	1.102 in	42.5 mm	28 mm	1.673 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	160 V	10 %	1.488 in	37.8 mm	PC Pins	6.9 mOhms	Radial - 4 Leads	-40 °C	105 ░C	Automotive EMI RFI Suppression	20 µF	Polypropylene (PP)	37.5 mm	1.476 in
Cornell Dubilier Knowles ALH685K351B064	1.102 in	42.5 mm	28 mm	1.673 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	350 V	10 %	1.476 in	37.5 mm	PC Pins	6.2 mOhms	Radial - 4 Leads	-40 °C	105 ░C	Automotive EMI RFI Suppression	6.8 ÁF	Polypropylene (PP)	37.5 mm	1.476 in
Cornell Dubilier Knowles ALH155K451A082	0.866 in	32 mm	22 mm	1.26 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	450 V	10 %	1.488 in	37.8 mm	PC Pins	7.3 mOhms	Radial	-40 °C	105 ░C	Automotive EMI RFI Suppression	1.5 µF	Polypropylene (PP)	27.5 mm	1.083 in
Cornell Dubilier Knowles ALH335K251A052	0.551 in	32 mm	14 mm	1.26 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	250 V	10 %	1.134 "	28.8 mm	PC Pins	6.2 mOhms	Radial	-40 °C	105 ░C	Automotive EMI RFI Suppression	3.3 µF	Polypropylene (PP)	27.5 mm	1.083 in
Cornell Dubilier Knowles ALH225K161A022	0.433 in	32 mm	11 mm	1.26 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	160 V	10 %	0.819 in	20.8 mm	PC Pins	15.3 mOhms	Radial	-40 °C	105 ░C	Automotive EMI RFI Suppression	2.2 µF	Polypropylene (PP)	27.5 mm	1.083 in
Cornell Dubilier Knowles ALH335K351A082	0.866 in	32 mm	22 mm	1.26 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	350 V	10 %	1.488 in	37.8 mm	PC Pins	5.7 mOhms	Radial	-40 °C	105 ░C	Automotive EMI RFI Suppression	3.3 µF	Polypropylene (PP)	27.5 mm	1.083 in
Cornell Dubilier Knowles ALH335K451B064	1.102 in	42.5 mm	28 mm	1.673 in	85C/85% Humidity Long Life Low ESL Low ESR THB	Through Hole	AEC-Q200	450 V	10 %	1.488 in	37.8 mm	PC Pins	7.4 mOhms	Radial - 4 Leads	-40 °C	105 ░C	Automotive EMI RFI Suppression	3.3 µF	Polypropylene (PP)	37.5 mm	1.476 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.25
		10	$ 2.89
		50	$ 2.35
		100	$ 2.33

Description

General part information

ALH Series

6.8 µF Film Capacitor 250V Polypropylene (PP) Radial
