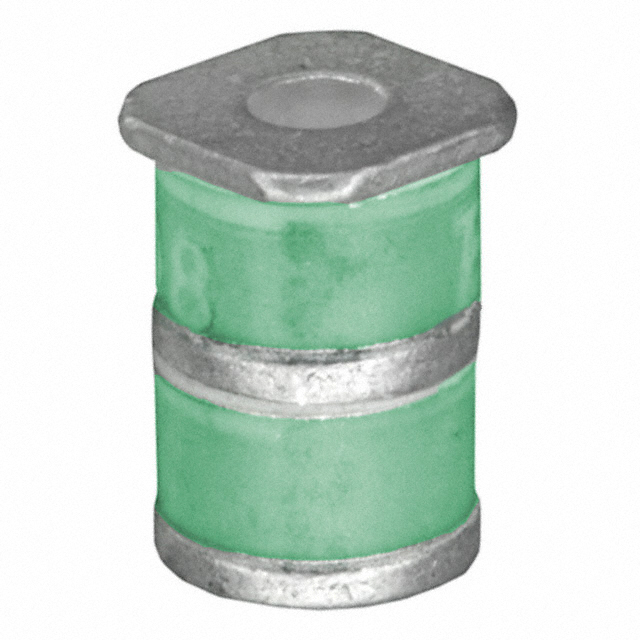

2036-30-SM

Active

Bourns Inc.

GDT 300V 10KA 3 POLE SMD

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 300V 10KA 3 POLE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	2036-30-SM

Fail Short	False
Impulse Discharge Current (8/20µs)	10000 A
Impulse Discharge Current (8/20µs)	10 kA
Mounting Type	Surface Mount
Number of Poles	3
Package / Case	3-SMD Cylinder Square End
Tolerance	20 %
Voltage - DC Spark Over (Nom)	300 V

...

Part	Tolerance	Voltage - DC Spark Over (Nom)	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Package / Case	Number of Poles	Mounting Type
Bourns Inc. 2036-23-B2FLF	20 %	230 V	10000 A	10 kA	Axial Cylinder 3 Lead (Radial Bend)	3	Through Hole
Bourns Inc. 2036-30-B	20 %	300 V	10000 A	10 kA	Axial Cylinder 3 Lead (T-Shape)	3	Through Hole
Bourns Inc. 2036-30-SM	20 %	300 V	10000 A	10 kA	3-SMD Cylinder Square End	3	Surface Mount
Bourns Inc. 2036-09-B3FLF	20 %	90 V	10000 A	10 kA	Axial Cylinder 3 Lead (Radial Bend)	3	Through Hole
Bourns Inc. 2036-20-SM-RPLF	20 %	200 V	10000 A	10 kA	3-SMD Cylinder Square End	3	Surface Mount
Bourns Inc. 2036-40-BLF	20 %	400 V	10000 A	10 kA	Axial Cylinder 3 Lead (T-Shape)	3	Through Hole
Bourns Inc. 2036-35-B2	20 %	350 V	10000 A	10 kA	Axial Cylinder 3 Lead (Radial Bend)	3	Through Hole
Bourns Inc. 2036-23-BLF	20 %	230 V	10000 A	10 kA	Axial Cylinder 3 Lead (T-Shape)	3	Through Hole
Bourns Inc. 2036-15-C2LF	20 %	150 V	10000 A	10 kA	Axial Cylinder 3 Lead (Radial Bend)	3	Through Hole
Bourns Inc. 2036-07-A	20 %	75 V	10000 A	10 kA	Cylinder No Lead 3 Terminal	3	User Defined

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.88

General part information

Gas Discharge Tube 300 V 10000A (10kA) ±20% 3 Pole Surface Mount

Technical documentation and resources
