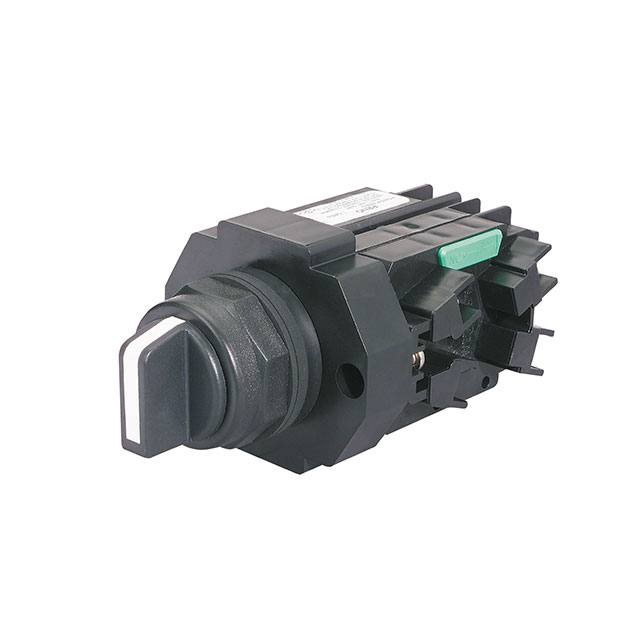

HSSO2-SHWE-CBFSR

Active

c3controls

30MM HAZ 2POS SS FCTRY SLD NO/NC

Search across all available documentation for this part.

Active

c3controls

30MM HAZ 2POS SS FCTRY SLD NO/NC

Technical Specifications

Parameters and characteristics for this part

Specification	HSSO2-SHWE-CBFSR

Approval Agency	UR, CSA, CE, cULus
Circuit	DPST-NO/NC
Current Rating (Amps)	10 A, 5 A
Depth Behind Flange	82.6 mm
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

Part	Termination Style	Voltage Rating - AC	Depth Behind Flange	Type	Number of Positions	Illumination	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating - DC	Approval Agency	Switch Function	Mechanical Life	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
c3controls HSSO2-SHWE-CBFSR	Screw Terminal	72 V	82.6 mm	Standard	2	Non-Illuminated	DPST-NO/NC	-40 °C	55 °C	IP65 - Dust Tight Water Resistant	28 V	CE CSA cULus UR	Off-On On-Off	500000 Cycles	30 mm	5 A 10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 76.29

General part information

Selector Switch 2 Position DPST-NO/NC 10A (AC), 5A (DC) 72 V Panel Mount

Technical documentation and resources

No documents available
