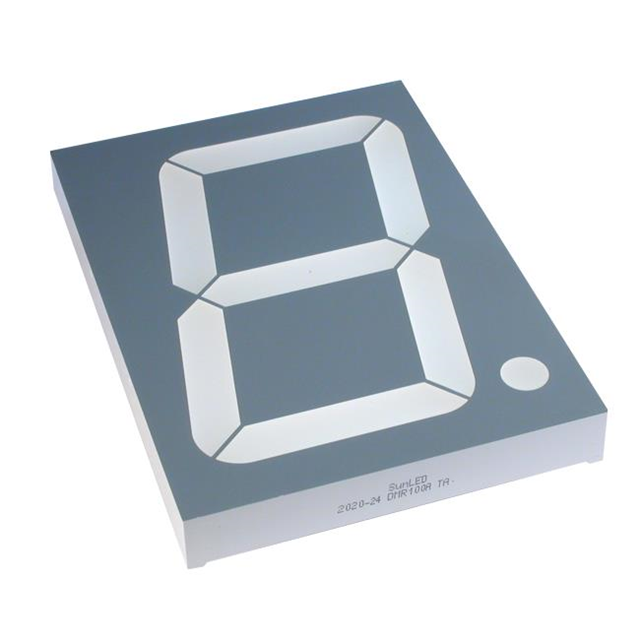

DMR100A

Obsolete

SunLED

4" MEGA-RED LED DISPLAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DMR100A

Obsolete

SunLED

4" MEGA-RED LED DISPLAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMR100A

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	101.2 mm
Digit/Alpha Size	3.98 in
Display Type	7-Segment
Millicandela Rating	119.99 mcd
Number of Characters [custom]	1
Package / Case	107 mm
Package / Case	4.21 in
Package / Case	10-DIP
Power Dissipation (Max) [Max]	150 mW
Size / Dimension	12
Size / Dimension [x]	4.803 in
Voltage - Forward (Vf) (Typ)	7.2 V
Wavelength - Peak	655 nm

DMR100 Series

Part	Voltage - Forward (Vf) (Typ)	Color	Current - Test	Size / Dimension	Size / Dimension [x]	Millicandela Rating	Package / Case	Package / Case	Package / Case	Display Type	Number of Characters [custom]	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Power Dissipation (Max) [Max]
SunLED DMR100A	7.2 V	Red	10 mA	12	4.803 in	119.99 mcd	107 mm	4.21 in	10-DIP	7-Segment	1	655 nm	101.2 mm	3.98 in	Common Anode	150 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DMR100 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 7.2V 10mA 4.803" H x 3.543" W x 0.600" D (122.00mm x 90.00mm x 15.25mm) 10-DIP (4.210", 107.00mm)
