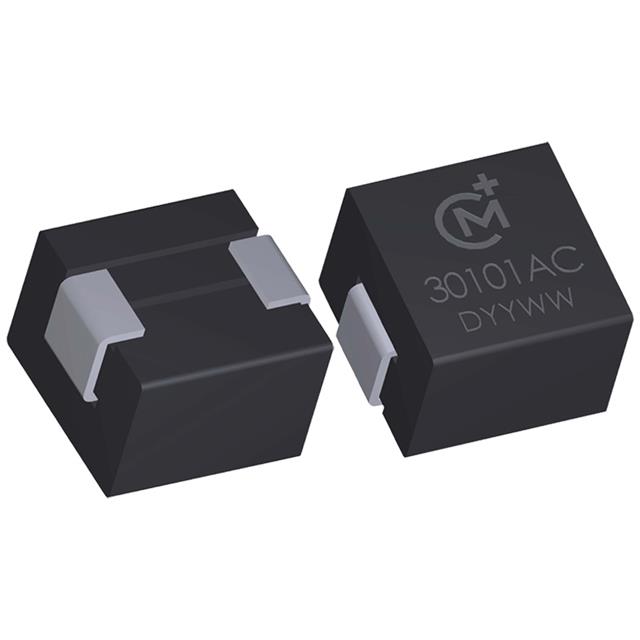

30201AC

Active

Murata Power Solutions Inc.

TAPE&REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

30201AC

Active

Murata Power Solutions Inc.

TAPE&REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	30201AC

Current - Saturation (Isat)	22 A
Current Rating (Amps)	22 A
DC Resistance (DCR) [Max]	0.35 mOhm
Height - Seated (Max) [Max]	4.96 mm
Height - Seated (Max) [Max] [z]	0.195 in
Inductance	191 nH
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD
Shielding	Shielded
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Tolerance	20 %
Type	Wirewound

30 Series

Part	Current - Saturation (Isat)	Shielding	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current Rating (Amps)	Type	Inductance Frequency - Test	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Size / Dimension [y]
Murata Power Solutions Inc. 30800AC	47 A	Shielded	2-SMD	7 mm	0.276 in	0.276 "	7 mm	20 %	Surface Mount	0.195 in	4.96 mm	37 A	Wirewound	1 MHz	80 nH	-40 °C	130 °C	0.35 mOhm
Murata Power Solutions Inc. 30221BC	29 A	Shielded	2-SMD		0.276 in	0.402 in	10.2 mm	20 %	Surface Mount	0.195 in	4.96 mm	29 A	Wirewound	1 MHz		-40 °C	130 °C	0.42 mOhm	7 mm
Murata Power Solutions Inc. 30151BC	38 A	Shielded	2-SMD		0.276 in	0.402 in	10.2 mm	20 %	Surface Mount	0.195 in	4.96 mm	37 A	Wirewound	1 MHz	154 nH	-40 °C	130 °C	0.42 mOhm	7 mm
Murata Power Solutions Inc. 30850BC	71 A	Shielded	2-SMD		0.276 in	0.402 in	10.2 mm	20 %	Surface Mount	0.195 in	4.96 mm	37 A	Wirewound	1 MHz		-40 °C	130 °C	0.42 mOhm	7 mm
Murata Power Solutions Inc. 30101BC	58 A	Shielded	2-SMD		0.276 in	0.402 in	10.2 mm	20 %	Surface Mount	0.195 in	4.96 mm	37 A	Wirewound	1 MHz	100 nH	-40 °C	130 °C	0.42 mOhm	7 mm
Murata Power Solutions Inc. 30121BC	50 A	Shielded	2-SMD		0.276 in	0.402 in	10.2 mm	20 %	Surface Mount	0.195 in	4.96 mm	37 A	Wirewound	1 MHz	114 nH	-40 °C	130 °C	0.42 mOhm	7 mm
Murata Power Solutions Inc. 30201AC	22 A	Shielded	2-SMD	7 mm	0.276 in	0.276 "	7 mm	20 %	Surface Mount	0.195 in	4.96 mm	22 A	Wirewound	1 MHz	191 nH	-40 °C	130 °C	0.35 mOhm
Murata Power Solutions Inc. 30151AC	29 A	Shielded	2-SMD	7 mm	0.276 in	0.276 "	7 mm	20 %	Surface Mount	0.195 in	4.96 mm	29 A	Wirewound	1 MHz	145 nH	-40 °C	130 °C	0.35 mOhm
