M3190 SL001

Active

ALPHA WIRE

MULTI-PAIR 76COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 76COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	M3190 SL001

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	15.49 mm
Jacket (Insulation) Diameter [diameter]	0.61 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	76
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Insulation	Length	Length	Cable Type	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Conductor Material	Ratings	Jacket Color	Shield Type	Wire Gauge	Voltage	Conductor Strand
ALPHA WIRE M3190 SL001	76	-20 C	80 C	100 %	15.49 mm	0.61 "	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	1000 ft	304.8 m	Multi-Pair	Drain Wire	1.143 mm	0.045 in	Aluminum	Copper Tinned	UL Style 2464	Slate	Foil	22 AWG	300 V	Solid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.55
Newark	Spool of 1000	1	$ 9692.73

General part information

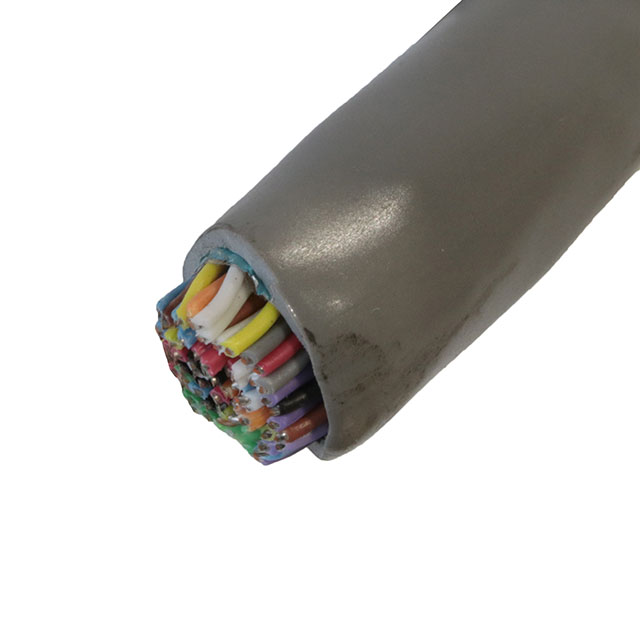

76 (38 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 1000.0' (304.8m)
