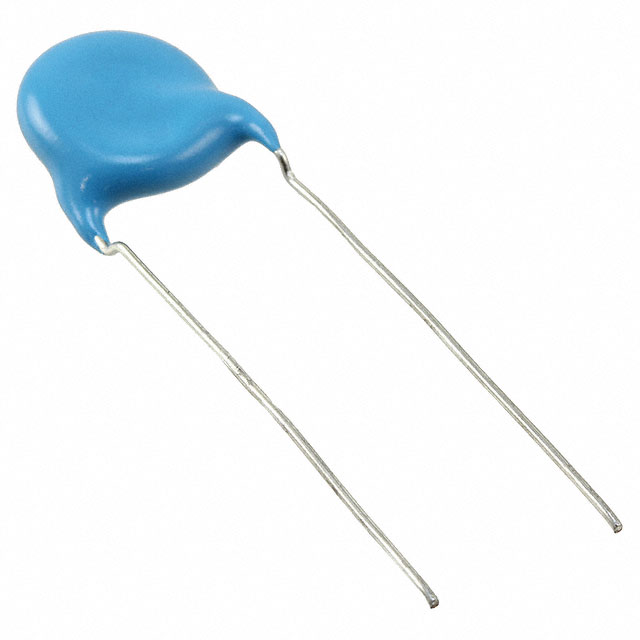

DE1E3RB332MA4BR01F

Active

Murata Power Solutions Inc.

CAP CER 3300PF 500V RADIAL

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CAP CER 3300PF 500V RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Applications	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Ratings	Voltage - Rated	Lead Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DE1E3RB222MJ4BR01F	14 mm	0.551 "	Safety	E	125 °C	-40 °C	2200 pF	X1 Y1	500 VAC	Straight	11 mm	0.433 "	Disc Radial	Through Hole	0.394 in	10 mm	20 %
Murata Power Solutions Inc. DE1E3RB472MJ4BR01F			Safety	E	125 °C	-40 °C	4700 pF	X1 Y1	500 VAC	Straight			Disc Radial	Through Hole	0.394 in	10 mm	20 %	17 mm	0.669 in
Murata Power Solutions Inc. DE1E3RB332MA4BR01F		0.63 in	Safety	E	125 °C	-40 °C	3300 pF	X1 Y1	500 VAC	Straight	13 mm	0.512 in	Disc Radial	Through Hole	0.394 in	10 mm	20 %			16 mm
Murata Power Solutions Inc. DE1E3RB102MN4AR01F			Safety	E	125 °C	-40 °C	0.001 µF	X1 Y1	500 VAC	Straight	8 mm	0.315 "	Disc Radial	Through Hole	0.394 in	10 mm	20 %	11 mm	0.433 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 0.37

General part information

3300 pF ±20% 500VAC Ceramic Capacitor E Radial, Disc
