DMA50P1200HR

Active

IXYS

DIODE ARRAY GP 1200V 50A TO247

Search across all available documentation for this part.

Active

IXYS

DIODE ARRAY GP 1200V 50A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	DMA50P1200HR

Current - Average Rectified (Io) (per Diode)	50 A
Current - Reverse Leakage @ Vr	40 µA
Diode Configuration	1 Pair Series Connection
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C

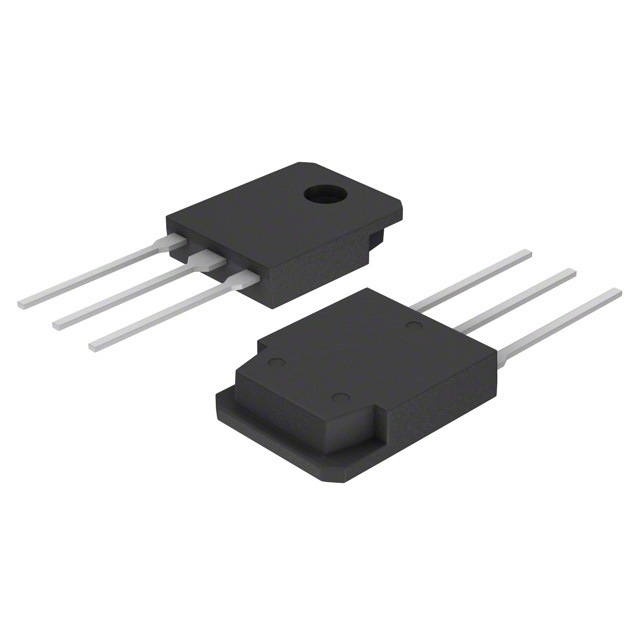

Package / Case	TO-247-3
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TO-247 (IXTH)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.31 V

Part	Current - Reverse Leakage @ Vr	Diode Configuration	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
IXYS DMA50P1200HR	40 µA	1 Pair Series Connection	TO-247-3	1.2 kV	Through Hole	TO-247 (IXTH)	Standard	1.31 V	50 A	Standard Recovery >500ns	200 mA	175 ░C	-55 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 9.33

General part information

Diode Array 1 Pair Series Connection 1200 V 50A Through Hole TO-247-3
