TN7S16-0213P1L

Active

ITT Cannon, LLC

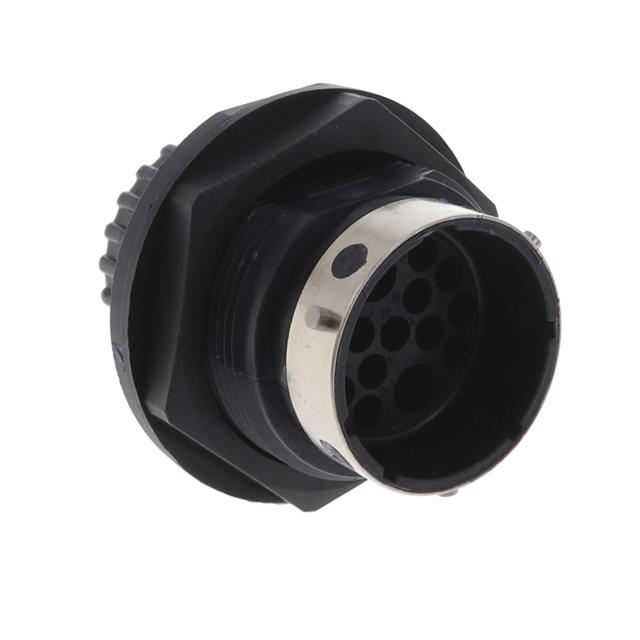

CIRCULAR CONNECTOR, TRIDENT NEPTUNE SERIES, JAM NUT RECEPTACLE, 15 CONTACTS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT NEPTUNE SERIES, JAM NUT RECEPTACLE, 15 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	TN7S16-0213P1L

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Solder, Crimp
Fastening Type	Detent Lock
Housing Color	Black
Includes	2 Nuts, 1 O-Ring, 1 Connector, 1 Grommet
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size - Insert	16-0213
Shielding	Unshielded
Type	For Male Pins

Part	Mounting Feature	Includes	Contact Shape	Contact Type	Material Flammability Rating	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Housing Color	Note	Shell Size - Insert	Shielding	Ingress Protection	Number of Positions
ITT Cannon, LLC TN7S16-0213P1L	Bulkhead - Front Side Nut	1 Connector 1 Grommet 1 O-Ring 2 Nuts	Circular	Crimp Solder Solder Cup	UL94 V-0	Detent Lock	Receptacle Housing	105 ░C	-55 °C	For Male Pins	Black	Contacts Not Included	16-0213	Unshielded	IP67 - Dust Tight Waterproof	15
ITT Cannon, LLC TN7S14-0012P1L	Bulkhead - Front Side Nut	1 Connector 1 Grommet 1 O-Ring 2 Nuts	Circular	Crimp Solder Solder Cup	UL94 V-0	Detent Lock	Receptacle Housing	105 ░C	-55 °C	For Male Pins	Black	Contacts Not Included	14-0012	Unshielded	IP67 - Dust Tight Waterproof	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 (13 + 2 Power) Position Circular Connector Receptacle Housing Panel Mount
