430557-501

Active

Laird Thermal Systems, Inc.

PELTR HOT12,65,F2A,1312,GG,W2.25

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTR HOT12,65,F2A,1312,GG,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Qmax @ Th	Resistance	Operating Temperature	Delta Tmax @ Th	Height [z]	Features	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Voltage - Max [Max]
Laird Thermal Systems, Inc. 430557-501	1.2 A	5.3 W	5.65 Ohms	80 °C	67 °C	3 mm	Lead Wires Non-Sealed	13.16 mm	13.16 mm	1	7.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.38

General part information

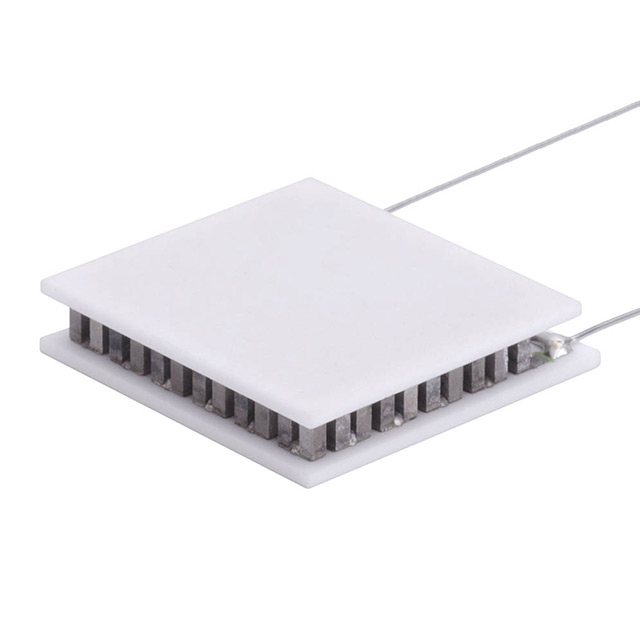

Peltier Module 5.3W @ 25°C 1.2 A 80°C

Technical documentation and resources
