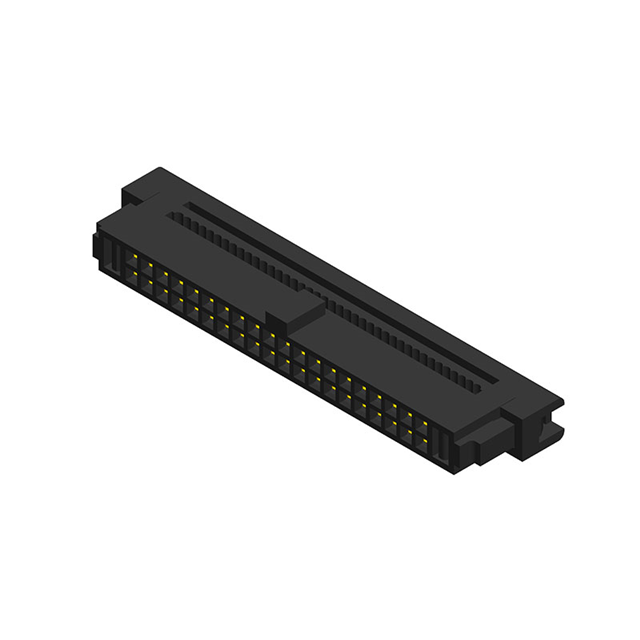

3230-50-0103-00

Active

CnC Tech, LLC

CONN SOCKET 50POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 50POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3230-50-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Wire Type	Ribbon Cable

Part	Contact Finish Thickness	Features	Contact Type	Mounting Type	Wire Type	Connector Type	Cable Termination	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Number of Rows
CnC Tech, LLC 3230-50-0101-00	Flash	Feed Through	Female Socket	Free Hanging (In-Line)	Ribbon Cable	Socket	IDC	Gold	50	0.05 in	1.27 mm	1.27 mm	0.05 in	2
CnC Tech, LLC 3230-50-0103-00	Flash	Feed Through Polarizing Key Strain Relief	Female Socket	Free Hanging (In-Line)	Ribbon Cable	Socket	IDC	Gold	50	0.05 in	1.27 mm	1.27 mm	0.05 in	2
CnC Tech, LLC 3230-50-0104-00	Flash	Feed Through Strain Relief	Female Socket	Free Hanging (In-Line)	Ribbon Cable	Socket	IDC	Gold	50	0.05 in	1.27 mm	1.27 mm	0.05 in	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Socket Connector IDC Gold
