7415W 0601000

Active

Belden Inc.

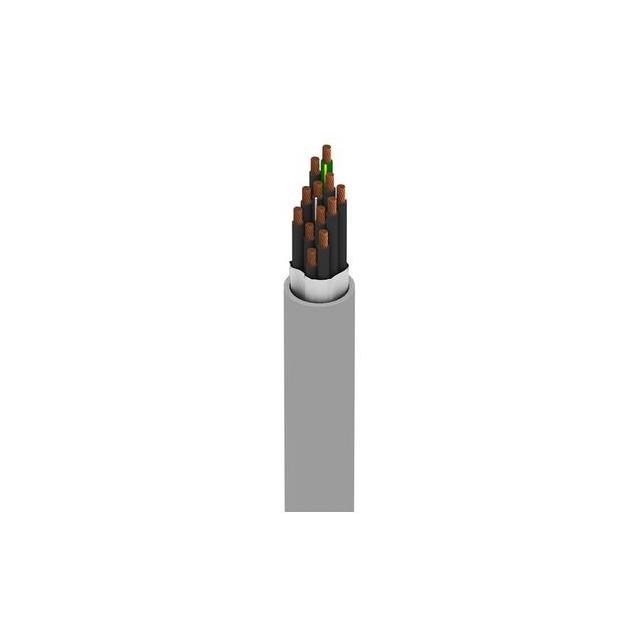

CABLE 12COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7415W 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	11.89 mm
Jacket (Insulation) Diameter [diameter]	0.468 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Ratings	UL Style 20328
Wire Gauge	18 AWG

Part	Ratings	Length	Length	Conductor Material	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Jacket Color
Belden Inc. 7415W 0601000	UL Style 20328	1000 ft	304.8 m	Copper Bare	Oil Resistant UV Resistant	1.194 mm	0.047 in	11.89 mm	0.468 in	12	16	30 AWG	Multi-Conductor	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	18 AWG	Thermoplastic Elastomer (TPE)	Chrome
Belden Inc. 7415W 060250	UL Style 20328	3000 "	76.2 m	Copper Bare	Oil Resistant UV Resistant	1.194 mm	0.047 in	11.89 mm	0.468 in	12	16	30 AWG	Multi-Conductor	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	18 AWG	Thermoplastic Elastomer (TPE)	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.76

General part information

12 Conductor Multi-Conductor Cable Chrome 18 AWG 1000.0' (304.8m)
