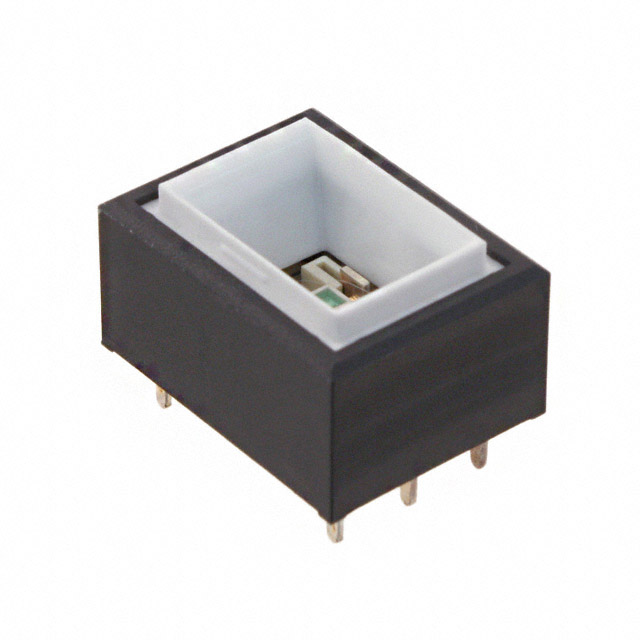

UB26RKW035F

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	UB26RKW035F

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Voltage Rating - DC	Actuator Marking	Illumination Type, Color	Circuit	Voltage Rating - AC	Actuator Type	Features	Illumination Voltage (Nominal)	Electrical Life	Switch Function	Termination Style	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Color - Actuator/Cap
NKK Switches UB26RKW035F	5 A	30 V	No Marking	Green LED	DPDT	125 V	Plunger for Cap	Stainless Steel	2.1 VDC	10000 Cycles	On-On	PC Pin	Through Hole	Illuminated Standard	50 °C	-25 °C	200000 Cycles
NKK Switches UB26RKW035D-JB	5 A	30 V	No Marking	Amber LED	DPDT	125 V	Rectangular Button	Stainless Steel	2 VDC	10000 Cycles	On-On	PC Pin	Through Hole	Illuminated Standard	50 °C	-25 °C	200000 Cycles	Clear
NKK Switches UB26RKW03N-B	5 A	30 V	No Marking		DPDT	125 V	Rectangular Button	Stainless Steel		10000 Cycles	On-On	PC Pin	Through Hole	Standard	70 °C	-20 C	200000 Cycles	White
NKK Switches UB26RKW03N/CUL-B	5 A	30 V	No Marking		DPDT	125 V	Rectangular Button	Stainless Steel		10000 Cycles	On-On	PC Pin	Through Hole	Standard	70 °C	-25 °C	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard, Illuminated Through Hole
