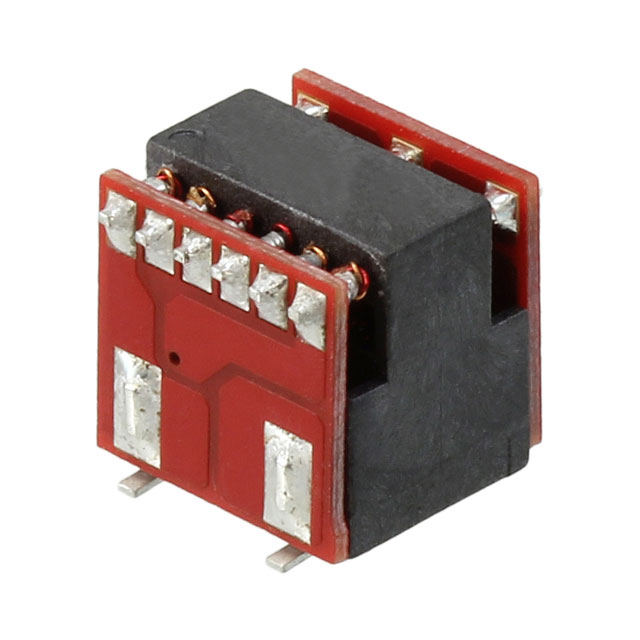

MTU2S0524MC-R

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 1:1, 2 W, 1 OUTPUT, 24 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 1:1, 2 W, 1 OUTPUT, 24 V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current - Output (Max) [Max]	Type	Applications	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation
Murata Power Solutions Inc. MTU2S0524MC-R	Surface Mount	83 mA	Isolated Module	ITE (Commercial)	85 %	2 W	4.5 V	1	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	24 V	5.5 V	6-SMD Module 5 Leads	85 °C	-40 °C	1000 V
Murata Power Solutions Inc. MTU2S0524MC	Surface Mount	83 mA	Isolated Module	ITE (Commercial)	85 %	2 W	4.5 V	1	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	24 V	5.5 V	6-SMD Module	85 °C	-40 °C	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 83mA 4.5V - 5.5V Input
