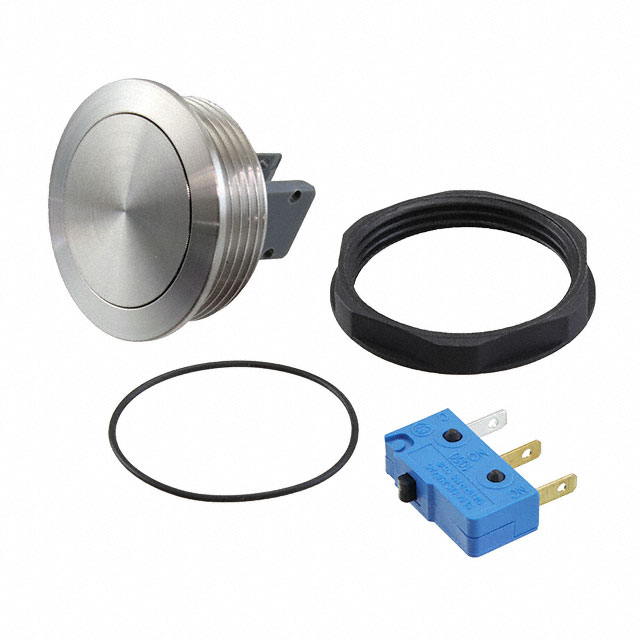

1241.6661.1130000

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 10A 250V

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6661.1130000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	10 A
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - AC	250 V

Part	Mounting Type	Voltage Rating - AC	Circuit	Mechanical Life	Panel Cutout Dimensions [diameter]	Ingress Protection	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Termination Style	Type	Switch Function	Actuator Type	Current Rating (Amps)	Actuator Marking
SCHURTER Inc. 1241.6661.1130000	Panel Mount Front	250 V	SPDT	1500000 Cycles	30.1 mm	IP40	Silver	-25 °C	85 °C	50000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal	On-Mom	Button Flush Round	10 A	No Marking
SCHURTER Inc. 1241.6661.1120000	Panel Mount Front	125 V	SPDT	1500000 Cycles	30.1 mm	IP40	Silver	-25 °C	85 °C	200000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal	On-Mom	Button Flush Round	5 A	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	N/A	1	$ 0.00

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
