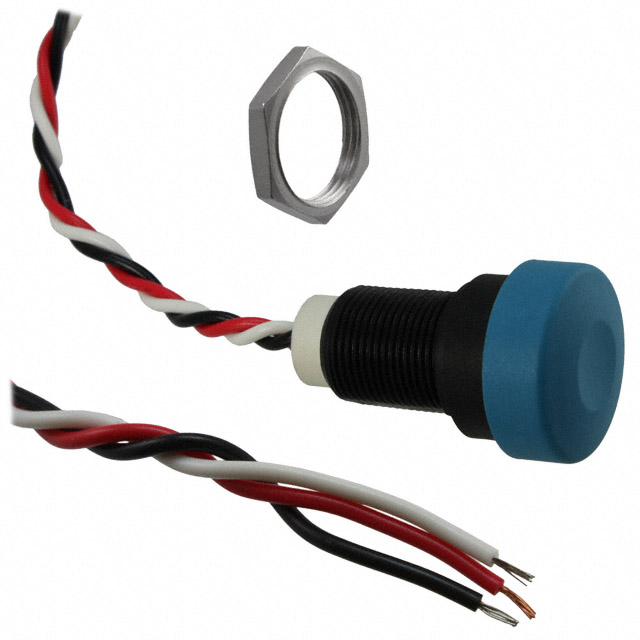

IHLR015XF1
ActiveAPEM
SWITCH PUSH HALL EFF 1.25MA 4.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IHLR015XF1 |
|---|---|
| Actuator Color | Blue |
| Actuator Type | Round Button |
| Body Color | Black |
| Circuit | Single |
| Current - Output (Max) [Max] | 1.25 mA |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Supply Current [Max] | 9 mA |
| Supply Voltage [Max] | 5.5 V |
| Supply Voltage [Min] | 4.5 V |
| Switch Function | Proportional Linear Output |
| Termination Style | Wire Leads |
| Voltage - Output (Max) [Max] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 109.78 | |
| 10 | $ 94.67 | |||
| 25 | $ 89.23 | |||
| 50 | $ 85.31 | |||
| 100 | $ 81.56 | |||
Description
General part information
IHLR015 Series
Pushbutton Hall Effect Switch 1.25mA 4.5 V
