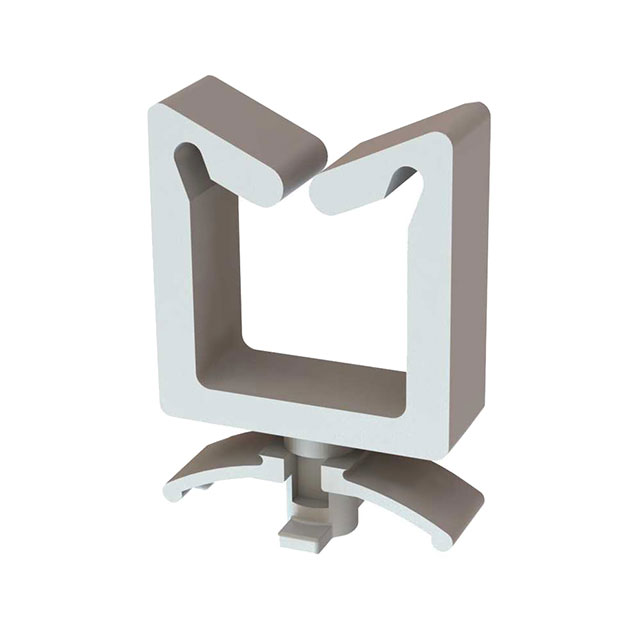

WS-9-3-01

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.3 MM, 5.6 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.3 MM, 5.6 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WS-9-3-01

Color	Natural
Features	Anti-Rotation Pin
Height [z]	1.06 in
Height [z]	26.92 mm
Length	15.24 mm
Length	0.6 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Winged, Push In, 1/4 Turn
Opening Size	11.18 mm, 19.05 mm
Opening Size [x]	0.44 in
Opening Size [y]	0.75 in
Panel Hole Size	Rectangular
Panel Hole Size [x]	0.157 "
Panel Hole Size [x]	4 mm
Panel Hole Size [y]	0.283 in
Panel Hole Size [y]	7.19 mm
Type	Clip, Wire Saddle
Type Attributes	Hinged
Width [x]	0.22 in
Width [x]	5.59 mm

Part	Material Flammability Rating	Height [z]	Height [z]	Material	Type Attributes	Color	Type	Opening Size [y]	Opening Size	Opening Size [x]	Width [x]	Width [x]	Mounting Type	Panel Hole Size	Panel Hole Size [x]	Panel Hole Size [y]	Panel Hole Size [x]	Panel Hole Size [y]	Length	Length	Features
Essentra Access Solutions WS-9-3-01	UL94 V-2	1.06 in	26.92 mm	Polyamide (PA66) Nylon 6/6	Hinged	Natural	Clip Wire Saddle	0.75 in	11.18 mm 19.05 mm	0.44 in	0.22 in	5.59 mm	1/4 Turn Push In Winged	Rectangular	0.157 "	0.283 in	4 mm	7.19 mm	15.24 mm	0.6 in	Anti-Rotation Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Push In, 1/4 Turn, Winged 0.440" L x 0.750" H (11.18mm x 19.05mm)
