03GKEW3E

Active

Delta Electronics

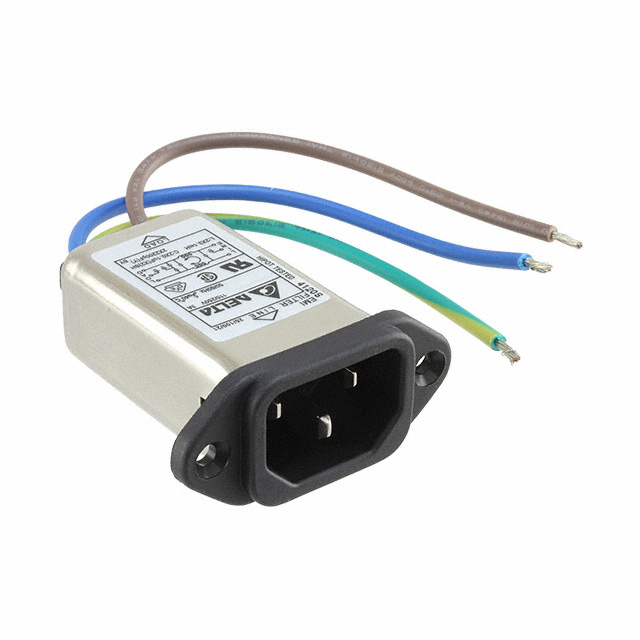

PWR ENT RCPT IEC320-C14 PNL WIRE

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	03GKEW3E

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A
Current Rating - Filter	3 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm
Panel Cutout Dimensions [y]	28.45 mm
Termination	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse	Filter Type	Approval Agency	Connector Type	Current Rating - Appliance Inlet	Connector Style	Mounting Type
Delta Electronics 03GKEW3E	Wire Leads	115 VAC	250 VAC	3 A	28.45 mm	28.45 mm		Filtered (EMI RFI) - Commercial	CSA UL VDE	Male Blades Receptacle	3 A	IEC 320-C14	Flange Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
